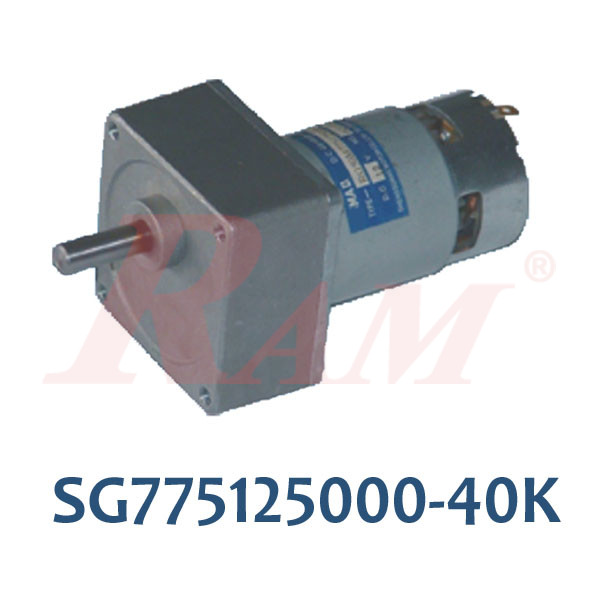

DC Geared Motor SG775125000 Series - 12VDC HIGH POWER LONG LIFE
Specification of geared motor:
- Rated Voltage: 12Vdc
- No Load Current: 500mA
- No Load Speed: 125 r/min
- Load Torque Current (With Load): 4A
- Load Torque Speed (With Load): 94 r/min
- Torque at maximum efficiency 57 kg.cm
- Load Torque: 19 kg.cm (1.86 N.m)
- Output Power: 20 W
- Stall Current: 14A
- Rotation direction: CW/CCW
- Motor Weight: 800~1000 gm
Note: We sell compatible Encoder for this motor at our online store.
