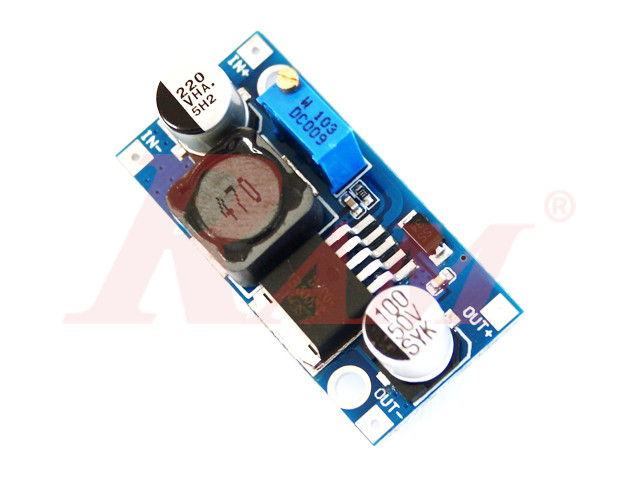

DC-DC Step Up Converter Adjustable 2.5A XL6009 (3~34Vdc to 4~35Vdc) SKU#DC200 بوردة دائرة رافع جهد - فولت

Features

• Type:  Switching type DC-DC Step-Up Boost Module
• Model: XL6009
• Input voltage: 3-34 V
• Output voltage: continuous adjustable (4-35 V)
• Output current: 2.5 A (MAX)
• Input current: 3 A (MAX)
• Input methods: IN + input is level, IN-input negative
• Output way: OUT + output is level, OUT-output negative
• Adjustment: first correct by input power supply (3-34 V, between) again using a multimeter to monitor output voltage and the potentiometer (turn step-down, in reverse chronological turn boost)
• Output voltage: 4-35 V continuously adjustable (the construction no-load commissioning) our default shipping voltage 12 V if you require another voltage can tune ourselves
• Dimentions: 45 x 20 x 14mm
• Weight: 11gr

Test Voltage Output Samples:

• Input 3V - Output 12V  0.4A  4.8W
• Input 5V - Output 12V  0.8A  9.6W
• Input 7.4V - Output 12V  1.5A  18W
• Input 12V - Output 15V  2A  30W
• Input 12V - Output 16V  2A  32W
• Input 12V - Output 18V  1.6A  28.8W
• Input 12V - Output 19V  1.5A  28.5W
• Input 12V - Output 24V  1A  24W

V-in x I-in x Efficiency = V-out x I-out
