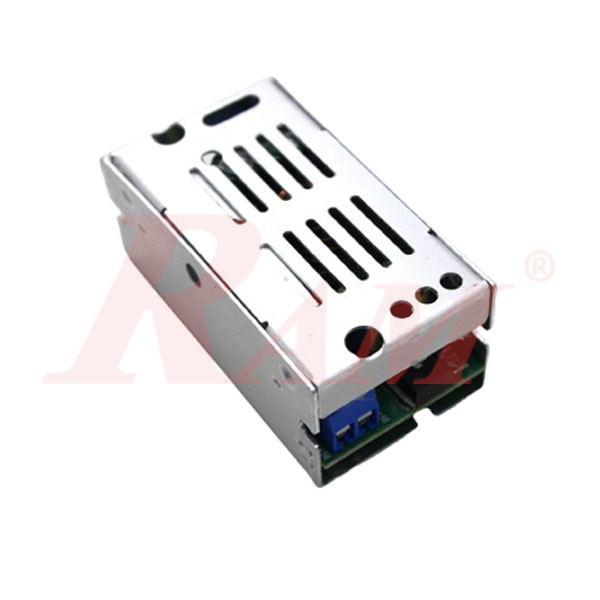

DC‑DC 48V/36V to 24V, 19V, 15V, 12V, 9V, 5V, 3V 15A High‑Efficiency Adjustable Regulator Converter Power Module
Description:
High-power DC‑DC step-down (buck) converter module capable of handling high input voltages (up to 55V) and delivering adjustable outputs with high efficiency. Suitable for battery charging, LED drivers, and high-current power supply applications.
Key Features:
- Wide input voltage range: 10–55V DC
- Adjustable output voltage: 1V to 35V
- High current capacity: up to 15A (continuous use recommended ≤10A)
- High efficiency: up to 94%
- Short-circuit and reverse polarity protection
- Non-isolated synchronous buck design

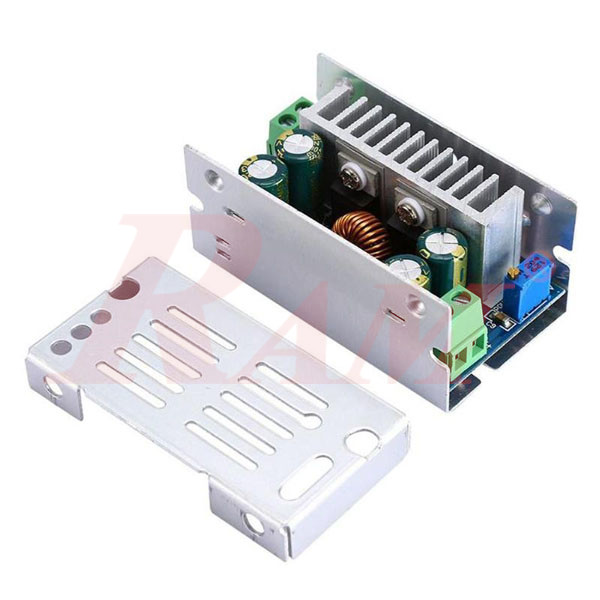

- Compact and robust with screw terminals for easy wiring
Technical Specifications:
- Input Voltage: 10–55V DC (max 60V)
- Output Voltage: 1–35V adjustable (commonly set to 24V, 19V, 15V, 12V, 9V, 5V, 3V)
- Maximum Output Current: 15A (sustained 10A recommended)
- Output Power: ~100W continuous, up to ~200W with enhanced cooling
- Conversion Efficiency: up to 94%
- Switching Frequency: 180kHz
- Operating Temperature: –10°C to +85°C
- Protections: Short-circuit protection, reverse polarity protection
- Module Type: Non-isolated buck regulator
- Dimensions: ~70 × 38 × 31 mm
- Weight: ~94g
