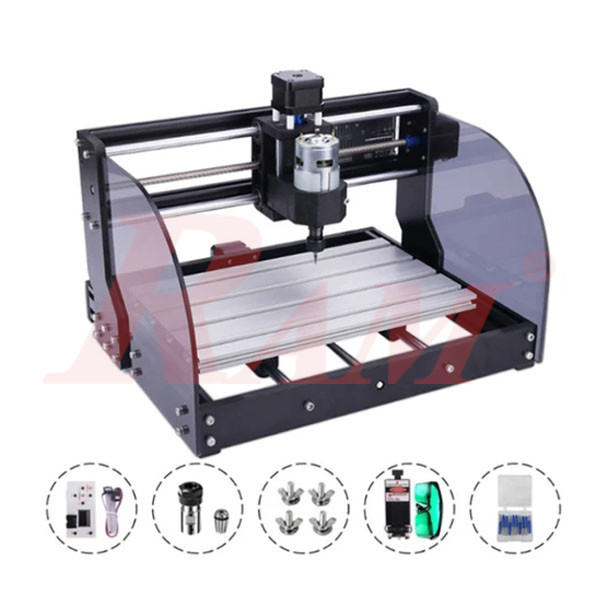

ماكينة CNC DIY 2x1 راوتر حفر + رأس ليزر قدرة 15W واط موديل CNC DIY3018Pro

Mini Aluminum CNC DIY + 15W laser CNC engraving machine Pcb Milling wood Router Printer - Working Area 300 x 180 x 45 mm

Specifications:

1. Engraving area: 300x180x45mm
2. Frame size: 400*330*240mm
3. Construction: Aluminum + plastic
4. Control Software: GRBL Control
5. Spindle Motor: 775 Spindle DC24V, Max. 100W ,7000rpm
6. Stepper Motor: NEMA17 stepper motor 1.3A 0.25N.M
7. Power Supply: Input AC100-240V,50/60Hz, 1.3A, Output DC24V 5A
8. Available System for PC: Windows XP/7/8/10/11/ Mac OS
9. Milling cutter: 3.175mm
10. ER11 was installed on the spindle motor

Package Include:

1. All outside Frame parts
2. All Electrical Parts
3. Laser and offline controller

4. Required Screws & Nuts
5. DC Spindel (+ER11-3.175)
6. LASER 15W
7. PCB Drill Engraving Bits 0.1 (1 box)
8. 4pcs clips
9. Power supply

10. Check the photos for the included parts checklist

NOTES:

• The laser cannot directly engrave transparent and reflective materials, such as acrylic and stainless steel. It needs to be blacked out and engraved. Otherwise, the laser is easy to wear out, resulting in weaker and weaker power.
• You need to assemble the machine because it comes as a DIY Kit.
• Can't Use offline controller board at the same time while connection to PC bia USB cable.

Download

• Software & Manual
