BTA41-600B Sensitive Gate Triac ترياك

BTA41-600B High Power TRIAC (40 Amperes 600 Volts)

Product Description

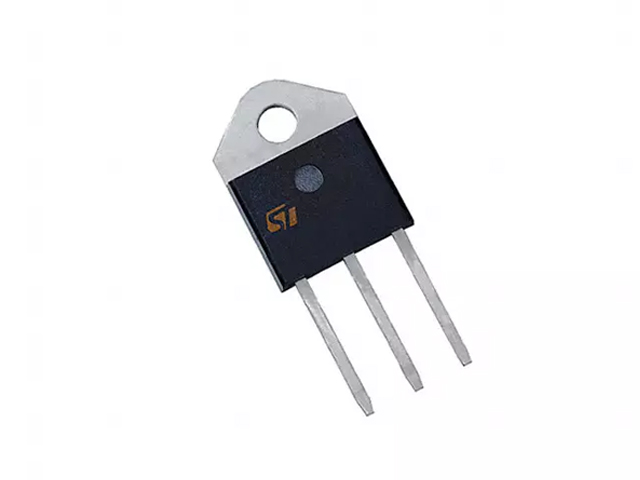

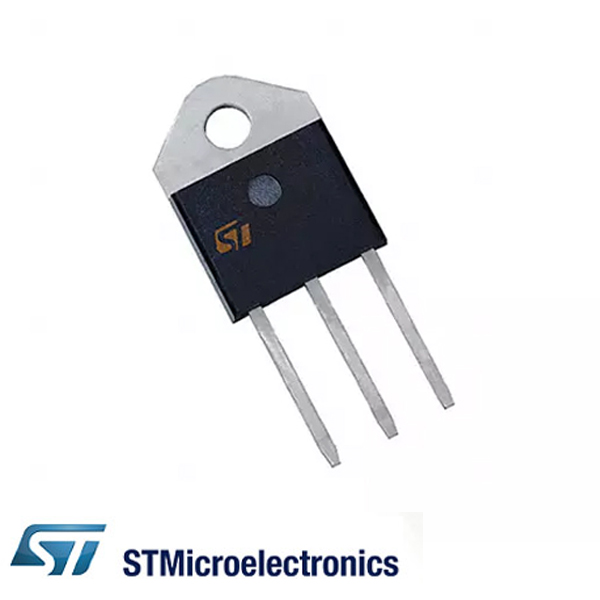

The BTA41-600B is a high-power, glass-passivated bidirectional AC switch (TRIAC) engineered for heavy-duty industrial switching and phase control applications. Capable of handling continuous root mean square (RMS) on-state currents up to 40 Amperes with a peak repetitive off-state voltage rating of 600 Volts, it provides robust power handling in demanding AC load environments.

Housed in a TOP-3 insulated metal tab package, the BTA41 series features internal ceramic isolation providing 2500 Volts RMS dielectric isolation between the internal semiconductor junctions and the external cooling tab. This isolated package design allows for direct mounting onto grounded heat sinks without requiring separate insulating mica washers or thermal pads.

Key Features

• High RMS Current Rating: Supports continuous on-state currents up to 40 Amperes for high-wattage AC loads.
• 600 Volts Off-State Blocking: Handles peak repetitive off-state voltages up to 600 Volts for standard mains AC lines (110 Volts to 240 Volts AC).
• Internal Ceramic Isolation: TOP-3 insulated package delivers 2500 Volts RMS dielectric insulation, eliminating the need for external tab insulators when mounting to heat sinks.
• High Commutating Capability: Standard 4-quadrant TRIAC with high dI/dt and dV/dt performance for inductive AC load switching.
• High Surge Capacity: Non-repetitive peak surge current rating up to 400 Amperes (at 50 Hertz) protects against high inrush currents.

Product Specifications

• Model: BTA41-600B
• Product Type: High Power Bidirectional AC Switch (TRIAC)
• Repetitive Peak Off-State Voltage: 600 Volts
• RMS On-State Current: 40 Amperes (at case temperature of 80 degrees Celsius)
• Non-Repetitive Peak Surge Current: 400 Amperes (50 Hertz, half cycle) / 420 Amperes (60 Hertz, half cycle)
• Gate Trigger Current: 50 Milliamperes Max (Quadrants I, II, III)
• Gate Trigger Voltage: 1.3 Volts Max
• Holding Current: 80 Milliamperes Max
• Peak Forward Voltage Drop: 1.5 Volts Max (at 60 Amperes peak)
• Package Type: TOP-3 Insulated (TO-218)
• Dielectric Insulation Voltage: 2500 Volts RMS AC (1 minute)
