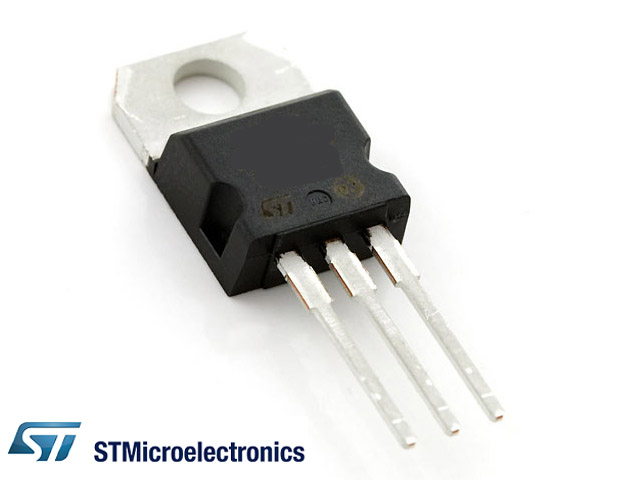

BTA16-600B Sensitive Gate Triac ترياك

BTA16-600B High Power TRIAC (16 Amperes 600 Volts)

Product Description

The BTA16-600B is a versatile, high-performance bidirectional AC switch (TRIAC) engineered for general-purpose AC power switching and phase control applications. Featuring a continuous root mean square (RMS) on-state current capacity of 16 Amperes and a peak repetitive off-state voltage rating of 600 Volts, it provides reliable switching for standard mains AC lines (110 Volts to 240 Volts AC).

Housed in an insulated TO-220AB package, the BTA16 series incorporates internal ceramic insulation that provides 2500 Volts RMS dielectric isolation between the internal semiconductor junctions and the external metal mounting tab. This allows the TRIAC to be mounted directly onto grounded aluminum heat sinks without requiring additional insulating mica washers or silicone pads. It is widely used in static relays, heating controllers, induction motor speed controllers, light dimmers, and appliance power control circuits.

Key Features

• High RMS On-State Current: Handles continuous load currents up to 16 Amperes.
• 600 Volts Off-State Blocking: Rated for peak repetitive off-state voltages up to 600 Volts.
• Internally Insulated TO-220AB Package: Built-in ceramic isolation delivers 2500 Volts RMS insulation to the mounting tab, simplifying heat sink attachment and mechanical assembly.
• 4-Quadrant Gate Triggering: Standard 4-quadrant operation with high dI/dt and dV/dt capabilities.
• High Surge Capability: Non-repetitive peak surge current rating up to 160 Amperes (at 50 Hertz) or 168 Amperes (at 60 Hertz) protects against startup inrush currents.

Product Specifications

• Model: BTA16-600B
• Product Type: Bidirectional AC Switch (TRIAC)
• Repetitive Peak Off-State Voltage: 600 Volts
• RMS On-State Current: 16 Amperes (at case temperature of 86 degrees Celsius)
• Non-Repetitive Peak Surge Current: 160 Amperes (50 Hertz, half cycle) / 168 Amperes (60 Hertz, half cycle)
• Gate Trigger Current: 50 Milliamperes Max (Quadrants I, II, III)
• Gate Trigger Voltage: 1.3 Volts Max
• Holding Current: 50 Milliamperes Max
• Peak Forward Voltage Drop: 1.5 Volts Max (at 22.5 Amperes peak)
• Package Type: TO-220AB Insulated
• Dielectric Insulation Voltage: 2500 Volts RMS AC (1 minute)
