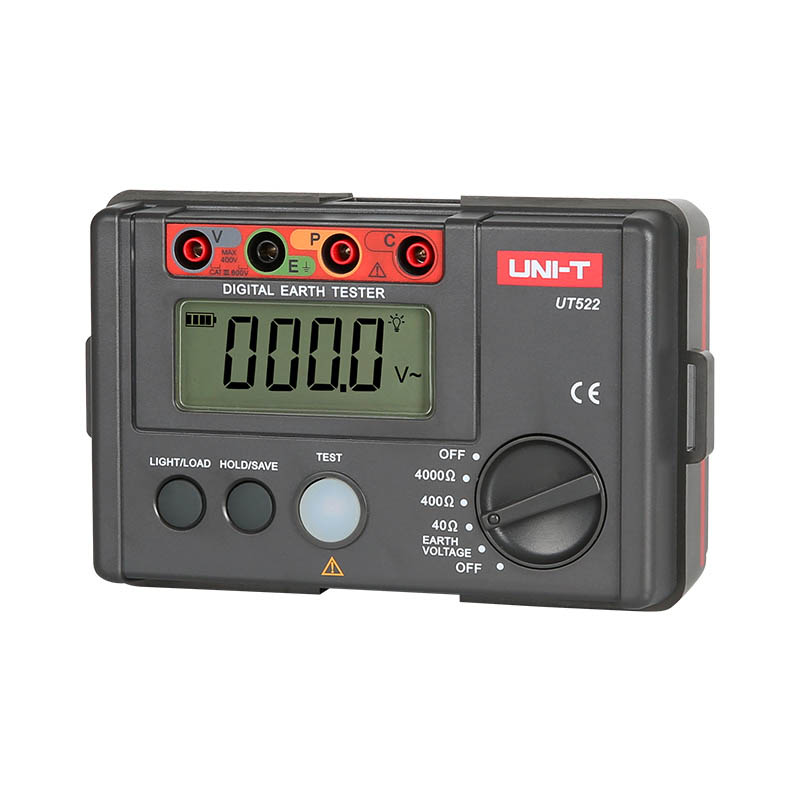

UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T’s introductory earth resistance tester with high economic value. Its lightweight design is convenient for fieldwork.
Features
- Manual range
- Low battery indication
- Data hold
- LCD backlight/auto power off
- Full icon display
- Double insulation protection
- Poor contact display: “…Ω”
- Over-range display: Display “OL”
- Simple 2-wire testing
- Precise 3-wire testing
| Specifications | Range | UT522 |
| Earth resistance (Ω) | 0~40Ω | ±(2%+20) |
| 0~400Ω | ±(2%+3) | |
| 0~4000Ω | ±(2%+3) | |
| AC earth voltage (V) | 0~400V | ±(1%+6) |
| Frequency: 50Hz/60Hz | √ | |
| Features | ||
| Display count | 4000 | |
| Manual range | √ | |
| Auto power off | Around 10 minutes | √ |
| Low battery indication | √ | |
| Data hold | √ | |
| Data storage | 20 | |
| LCD backlight | √ | |
| Full icon display | √ | |
| Double insulation protection | √ | |
| Poor contact display | “…Ω” | √ |
| Over-range display | Display “OL” | √ |
| Simple 2-wire testing | √ | |
| Precise 3-wire testing | √ | |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 6 | |
| Display | 70.6mm x 34mm | |
| Product Color | Red and grey | |
| Product net weight | 560g | |
| Product size | 160mm x 100mm x 70.5mm | |
| Standard accessories | Batteries, simple test leads with alligator clips, standard test leads with alligator clips, | |
| earth spike, gallus | ||
| Standard individual packing | Gift box, carrying bag, English manual |
