Highlights

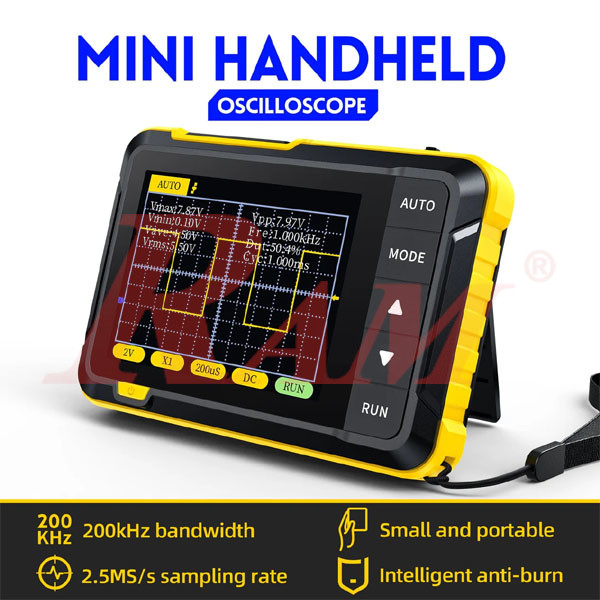

- Faster sampling speed: FNIRSI DSO152 mini oscilloscope has a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth. The 10 x probe can measure up to 800 VPP, which is equivalent to 280 V AC. Voltages up to 400 V can be measured.

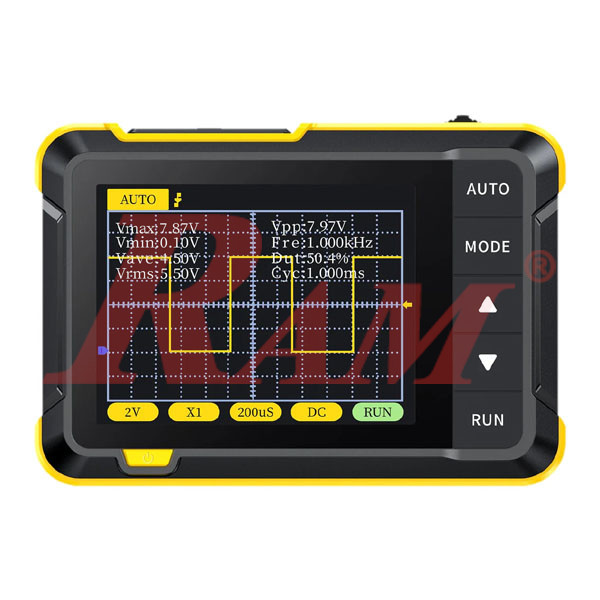

- Professionally Designed: Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. 2.8 inch LCD display with a resolution of 320*240, clear and easy to observe.

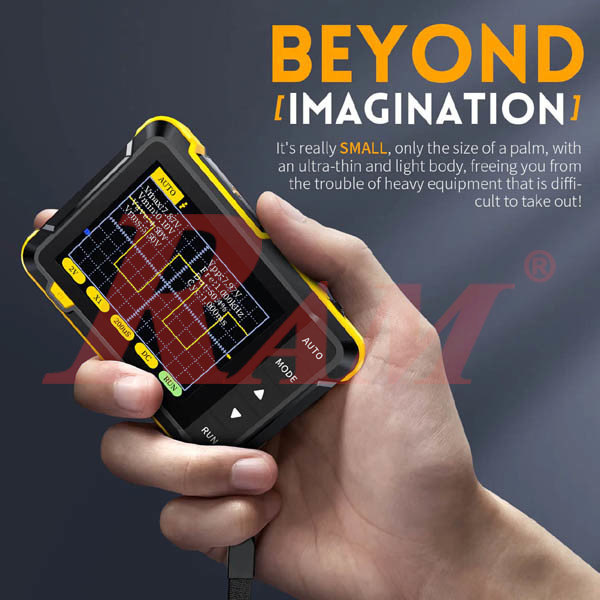

- Portable Mini Oscilloscope: Pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can avoid assembling welding process problems. Applicable to the maintenance industry and R&D education industry.

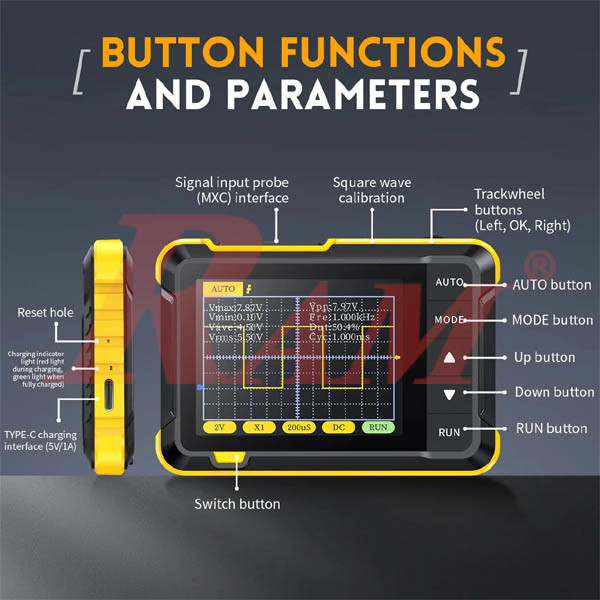

- Easy Measuring: Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms.
- Longer Battery Life: Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, which can be used continuously for about 4 hours after being fully charged. Type-C interface supports charging and data transmission, firmware upgrade.
Introduction
The DSO152 is a compact, entry-level oscilloscope, designed for basic signal analysis and maintenance tasks. It provides essential oscilloscope functions in a lightweight and easy-to-carry design. It has a realtime sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).
It can be used freely for both periodic analog signals and nonperiodic digital signals, and can measure voltages up to ±400V.
Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen. Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.
Features
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyists
- DSO oscilloscope: 2.5MS/s, 200KHz bandwidth, ±400V voltage range.
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Suitable for analog and digital signals.
- Convenient one-key AUTO adjustment, quickly generate waveforms with ease.
- Displays waveform without complex setup.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Long-press AUTO for baseline calibration.
- Recommended Use: Perfect for basic maintenance and educational labs requiring fundamental signal analysis.
Parameter Index
- Brand: FNIRSI
- Model: DSO-152
- Channel: 1
- Sampling Rate: 2.5MS/s
- Bandwidth: 200KHz
- Vertical Sensitivity: 10mV/Div - 20V/Div (Progress according to the 1-2-5 way)
- Time Base Range: 10μs/Div - 50s/Div (Progress according to the 1-2-5 way)
-
Voltage Range:
- X1: ±40V (Vpp: 80V)
- X10: ±400V (Vpp: 800V)
- Trigger Mode: Auto / Normal / Single
- Coupling Method: AC/DC
- Display: 2.8 Inches / PPI: 320×240
- USB Charging: 5V/1A
- Lithium Battery Capacity: 1000mAh
-
Square Wave Calibration:
- Frequency: 1KHz
- Duty cycle: 50%
- Size: 99 × 68.3 × 19.5 mm
- Weight: 100g
