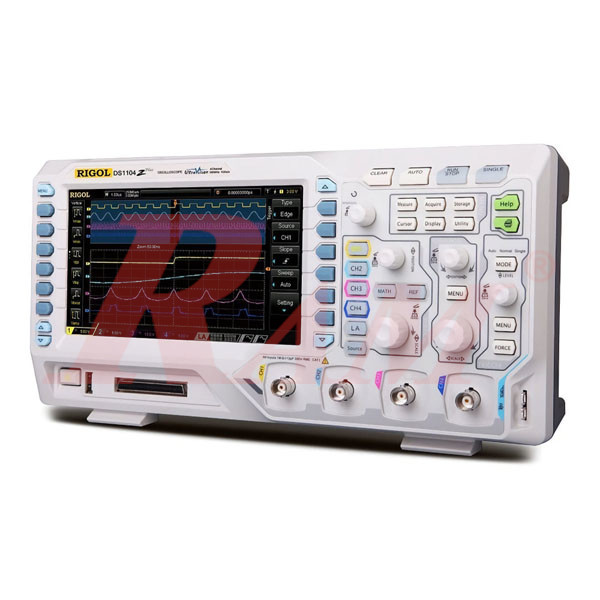

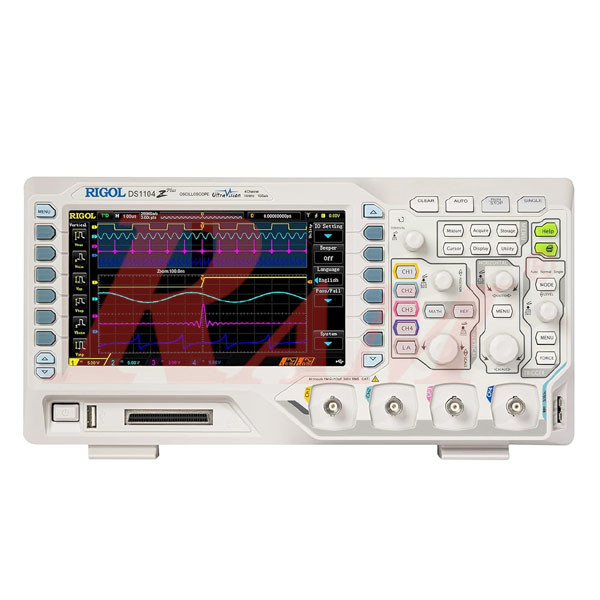

DS1104Z Plus RIGOL 4 Channel Digital Storage Oscilloscope 100MHz جهاز اوسلسكوب 100 ميجاهرتز 4 قناة مزود بقياسات وخصائص متقدمة

The Rigol DS1104Z is a versatile 4-channel digital oscilloscope designed for engineers, educators, and electronics enthusiasts. It offers a blend of performance and affordability, making it suitable for various applications, including production testing, field service, research, and education.

Technical Specifications:

• Bandwidth: 100 MHz
• Analog Channels: 4
• Digital Channels: 16 (with MSO upgrade option)
• Real-Time Sample Rate: Up to 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (all channels active)
• Memory Depth: 12 Mpts standard, expandable to 24 Mpts
• Waveform Acquisition Rate: Up to 30,000 wfms/s
• Vertical Sensitivity: 1 mV/div to 10 V/div
• Vertical Resolution: 8 bits
• Math Functions: Add, Subtract, Multiply, Divide, FFT, editable
• Display: 7-inch color LCD (800×480)

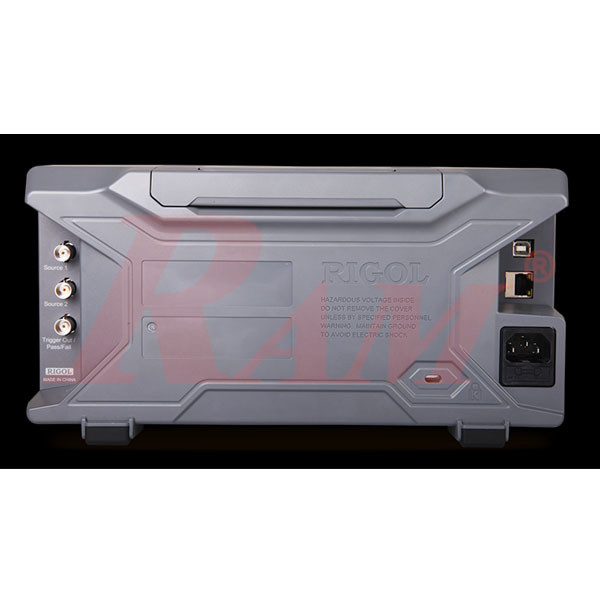

• Interfaces: LAN, USB Host & Device, AUX, optional USB-GPIB
• Power Consumption: Max 50 W
• Operating Temperature: 0°C to +50°C
• Dimensions: 313.1 × 160.8 × 122.4 mm
• Weight: Approximately 3.8 kg

Key Features:

• UltraVision Technology for deep memory and high waveform capture rates
• MSO upgrade option (16 digital channels with RPL1116 logic probe)
• Serial bus triggering and decoding (RS232/UART, I²C, SPI)
• Waveform recording and playback (optional, up to 60,000 frames)
• Digital fluorescent display with intensity-graded waveforms

More Key Features:

• Advanced Trigger Functions:
  Includes edge, pulse width, slope, video, pattern, duration, and serial bus triggers.
• Segmented Memory Acquisition:
  Captures up to 80,000 segments with minimal dead time, ideal for capturing rare or intermittent signals.
• Pass/Fail Testing:
  Allows for user-defined testing templates and automated signal validation.
• Mask Testing:
  Real-time comparison against signal masks for quality control and debugging.
• Multiple Math Waveforms:
  Supports simultaneous use of multiple math operations on input signals.
• Waveform Intensity Grading:
  Simulates analog scope behavior by displaying signal density with color grading.
• Built-in Help System:
  On-screen help for all functions and settings for quick reference.
• Remote Control and SCPI Support:
  Full support for remote operation via SCPI commands over USB or LAN.
• Web Control Interface:
  Allows remote viewing and control of the oscilloscope through a standard web browser.
• Upgradeable via Software Options:
  Enables unlocking additional features (e.g., memory depth, decoding protocols, etc.) through license codes.
• Compact and Portable Design:
  Lightweight and small footprint, suitable for bench and field use.
