ESP32 S3-Cam AI Vision Module WiFi Real-Time Image Transmission for IoT, AI & Robot Development

Summery:

• Size: 27 × 40.5 × 19 mm
• Package: DIP-16
• Power Supply Voltage Range: 4.75 V – 5.25 V
• Operating Temperature: –20°C to +70°C
• Storing Environment: –40°C to +125°C, >90% RH
• SPI Flash: 32 Mbit (default)
• RAM: Internal 520 KB + external 8 MB PSRAM
• Bluetooth: Bluetooth 4.2 BR/EDR and BLE standard
• Serial Port Speed: Default: 115200 bps
• Image Output Format:
• • JPEG (supported only by OV2640)
  • BMP
  • GRAYS
• WiFi: 802.11 b/g/n/e/i
• Supporting Ports: USART, SPI, I2C, PWM
• Quantity of IO Ports: 9
• Spectrum Range: 2400 – 2483.5 MHz
• Antenna Type: Built-in PCB antenna with 2 dB gain

Overview

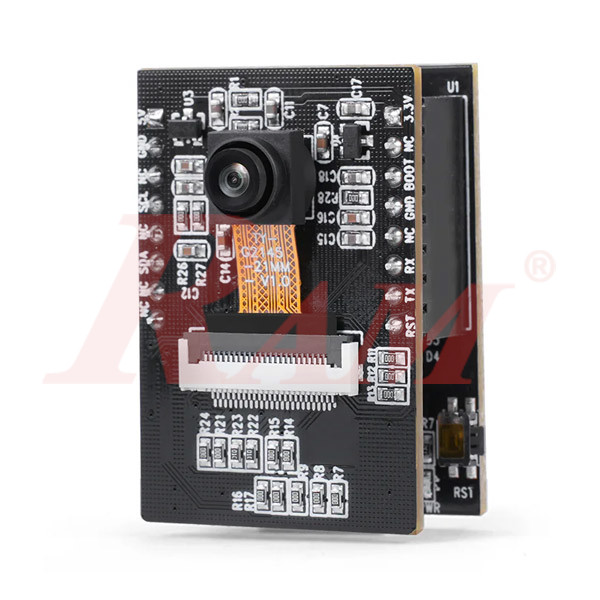

The Hiwonder ESP32 S3-Cam is an AI-vision camera module based on the ESP32-S3 chip, designed for real-time image capture and wireless video transmission. It is suitable for IoT, robotics, smart-home, and other embedded-vision applications. The module supports WiFi streaming, basic on-board image recognition (e.g. face recognition, color detection, line tracking), and can interface with microcontrollers (e.g. Arduino, ESP32, Raspberry Pi) for expanded functionality.

Key Features

• Built on the powerful ESP32-S3 chip (dual-core 32-bit CPU up to ~240 MHz)
• Integrated 2-megapixel camera
• Real-time video streaming over WiFi (module acts as AP or STA)
• On-board support for AI vision tasks: face recognition, color detection, line tracking (with appropriate firmware)

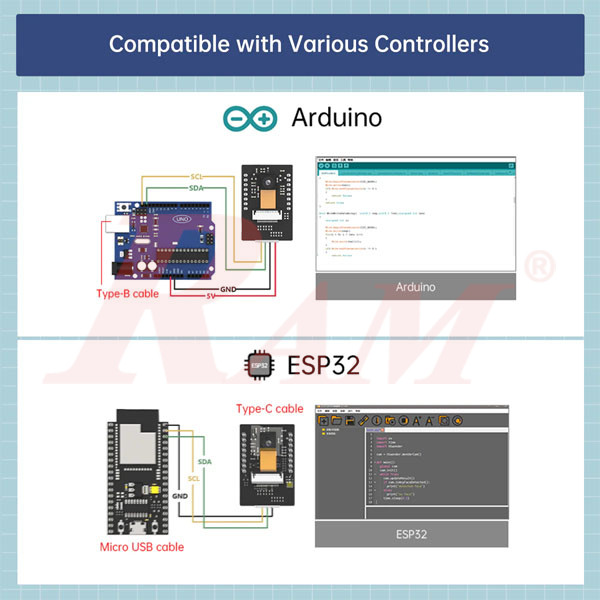

• Communication ports: USB-C (for power and firmware upload), I²C/UART for secondary controller connection
• Compact size and simple wiring — ideal for robotics and DIY embedded projects
• Easy firmware upgrade via USB-C cable

Technical Specifications

Camera & Imaging

• Camera: 2 MP module
• Video/Image Output Formats: JPEG/BMP/Grayscale (format depends somewhat on sensor used)
• Field of View (FOV): ~62° (for the listed S3-Cam module)

Module Hardware & Memory

• Processor: ESP32-S3 dual-core 32-bit CPU, up to 240 MHz, ~600 DMIPS performance
• RAM: 520 KB internal + external 8 MB PSRAM
• Flash (on-board SPI flash): 32 Mbit (default)

Connectivity & Interfaces

• WiFi: IEEE 802.11 b/g/n/e/i (2.4 GHz) — supports AP (hotspot) mode or STA (network) mode for video streaming
• Ports: USB-C (power/firmware upload / serial), I²C / UART for external controllers or additional sensors/devices
• IO: Several general IO pins (depending on module revision) for expansion and custom control
• Serial port speed: Default: 115200bps

Power & Physical Parameters

• Power supply range: ~4.75 V – 5.25 V DC

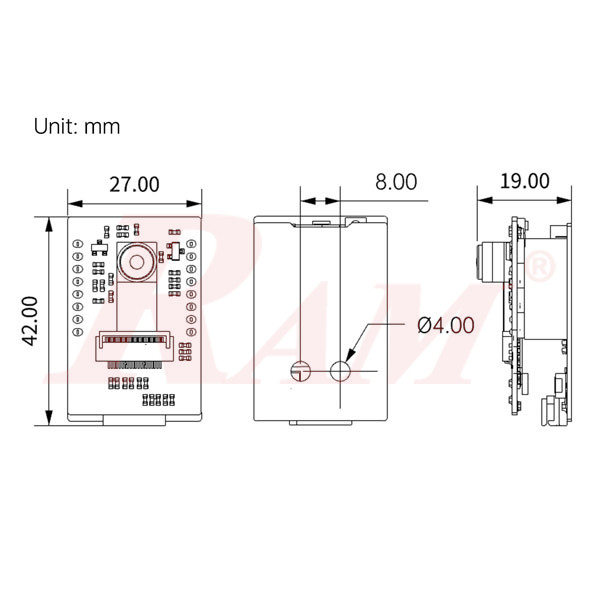

• Module size: ~27 × 40.5 × 19 mm
• Operating temperature: −20 °C to +70 °C
• Typical Applications / Use Cases
• Real-time video streaming over WiFi (e.g. robot camera, remote monitoring, mobile camera for IoT)
• Embedded vision tasks: face detection/recognition, color detection, line-tracking, basic AI-driven vision processing (with appropriate firmware)
• DIY robotics projects integrating vision + microcontroller logic
• Smart home cameras, surveillance cameras, IoT devices with camera + wireless communication
• Rapid prototyping for AI vision applications where compact size + WiFi connectivity are required
