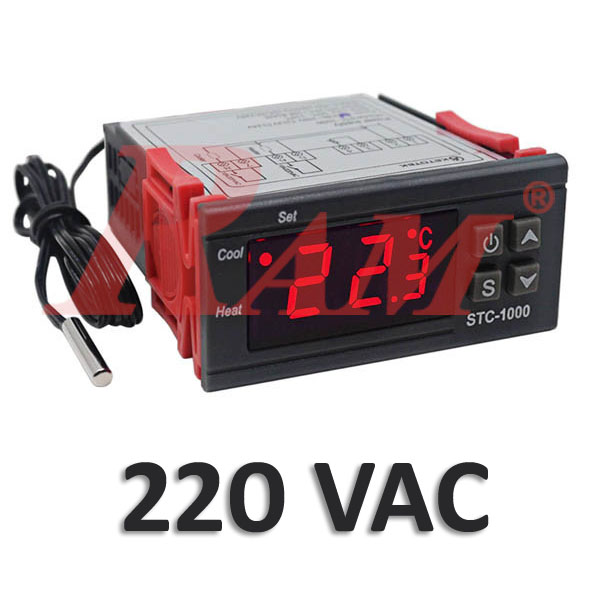

STC1000 220Vac Thermostat Temperature Control

https://www.ram-e-shop.com/web/image/product.template/8108/image_1920?unique=e2c5923

Thermometer Programmable Controller 220Vac

350.00 EGP 350.0 EGP 350.00 EGP

350.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل


مرجع داخلي: STC1000.220VAC.TEMP.CONTROL

STC-1000 Programmable Temperature Controller - All-Purpose Digital Thermostat Temperature

Overview:

Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when the temperature exceeds the temperature limit or when sensor error.

Features:

  • All-purpose temperature Controller STC-1000
  • Mounting size: 71*29mm
  • Autoswitch between refrigerating and heating
  • Retrundifference value
  • Voltage:220 V AC±10%
  • Frontpanel size 75(L) ×34.5(W) mm;
  • Mounting size: 71(L) ×29(W) mm;
  • Product size 75(L) ×34.5(W) ×85(D) mm;
  • Sensor cable length 1m (including the probe).

Specification:

  • Temperature measuring range: -50~99°C.
  • Resolution: 0.1℃.
  • Alarm temperature accuracy setting: 0.1℃
  • Accuracy: ±1℃ (-50~70℃).
  • Sensor error delay: 1 minute
  • Power supply: 110V-220VAC±10%, 50/60Hz.
  • Power consumption: ≤3W.
  • Sensor: NTC sensor (1PC) cable 2 M, 10KΩ/25℃,B vale 3435K/(25℃~85℃).
  • Relay contact capacity: Cool 10A/250VAC; Heat10A/250VAC.
  • Ambient temperature: 0~60℃.
  • Storage temperature: -30~75℃.
  • Relative humidity: 20%~85% (No condensate).
