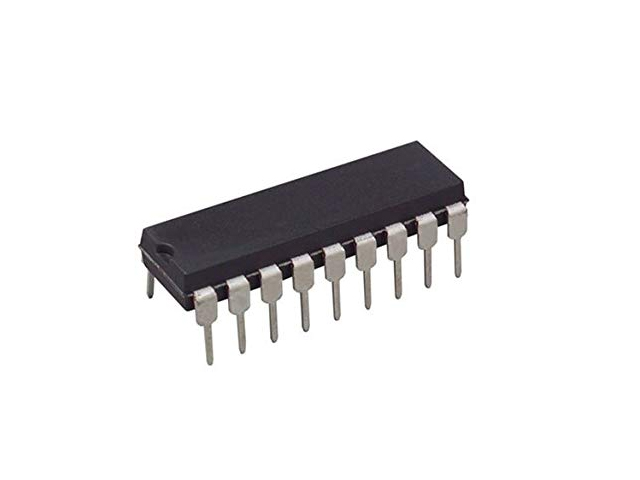

HT12E - Encoders
2^12 Series of Encoders
مرجع داخلي:
HT12E
General Description
The 2^12 encoders are a series of CMOS LSIs for remote control system applications. They are capable of encoding information which consists of N address bits and 12N data bits. Each address/ data input can be set to one of the two logic states.
The programmed addresses/data are transmitted together with the header bits via an RF or an infrared transmission medium upon receipt of a trigger signal. The capability to select a TE trigger on the HT12E or a DATA trigger on the HT12A further enhances the application flexibility of the 2^12 series of encoders. The HT12A additionally provides a 38kHz carrier for infrared systems.
