Highlights
- Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V.

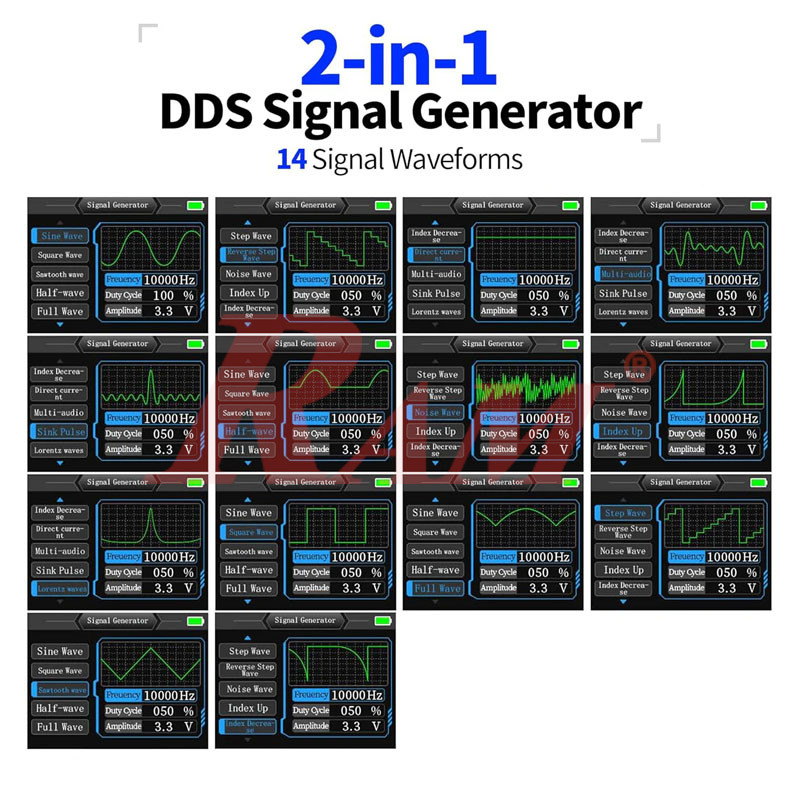

- DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz.

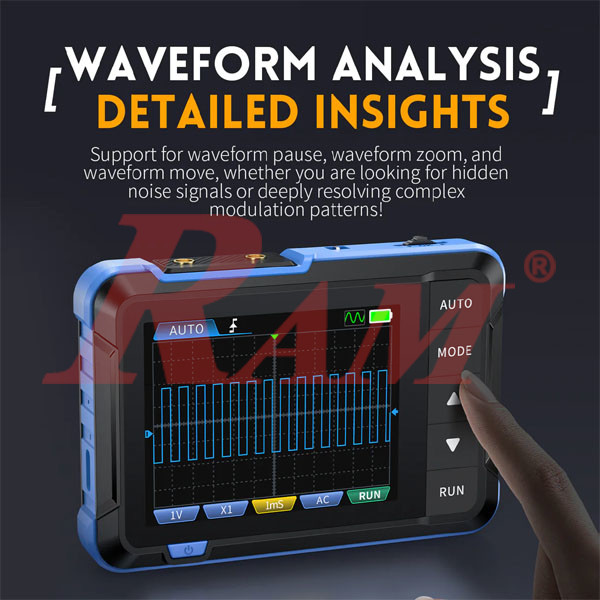

- Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging.

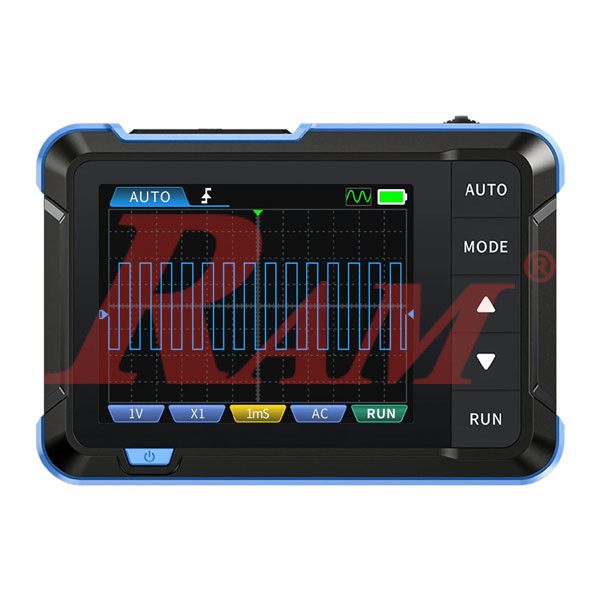

- Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals.
- Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours.

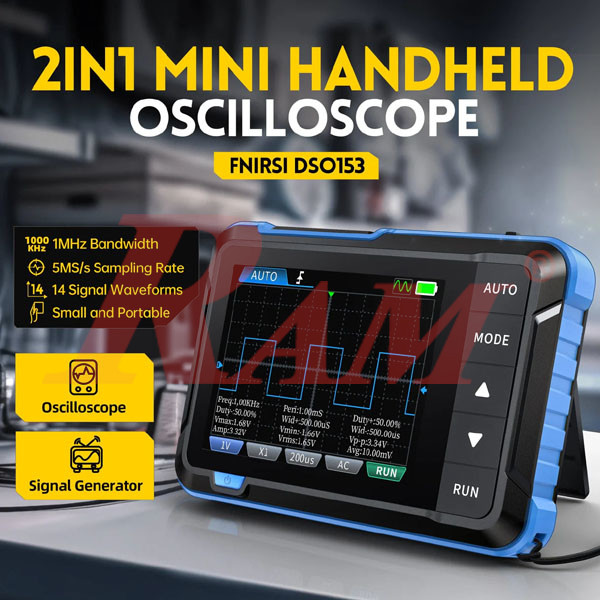

Introduction

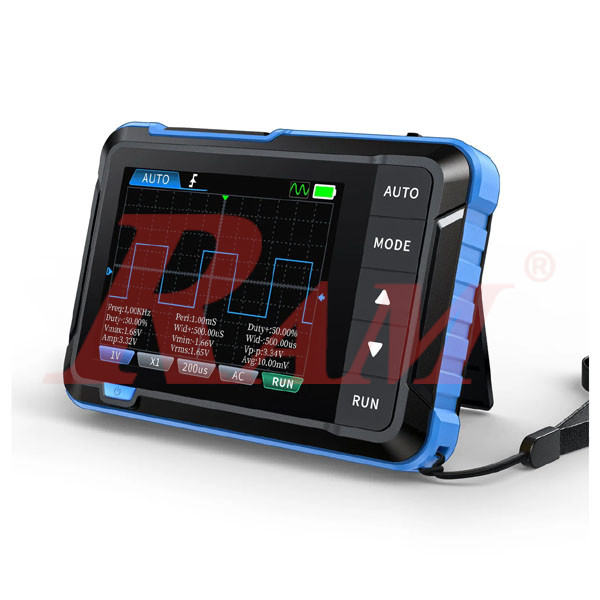

The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Features
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz

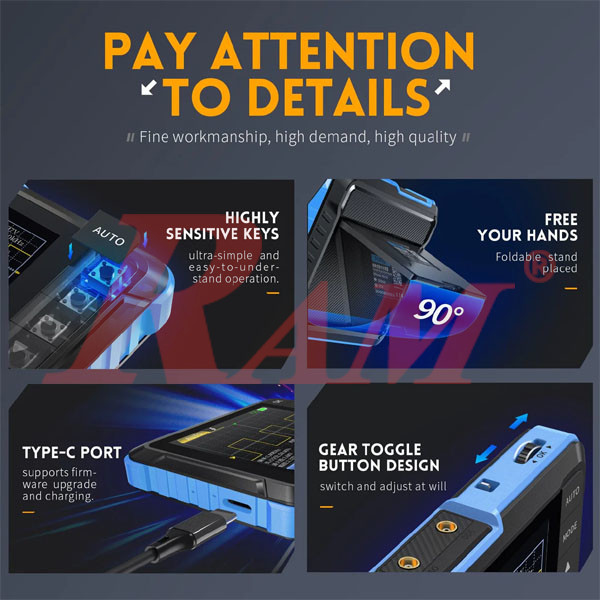

- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.

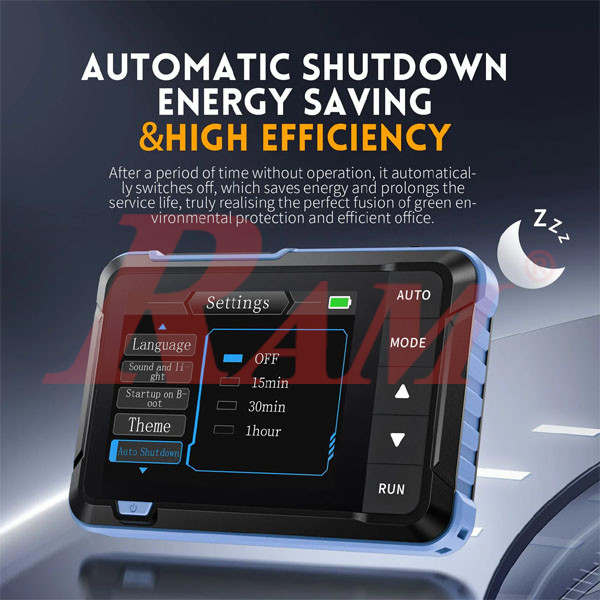

- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.

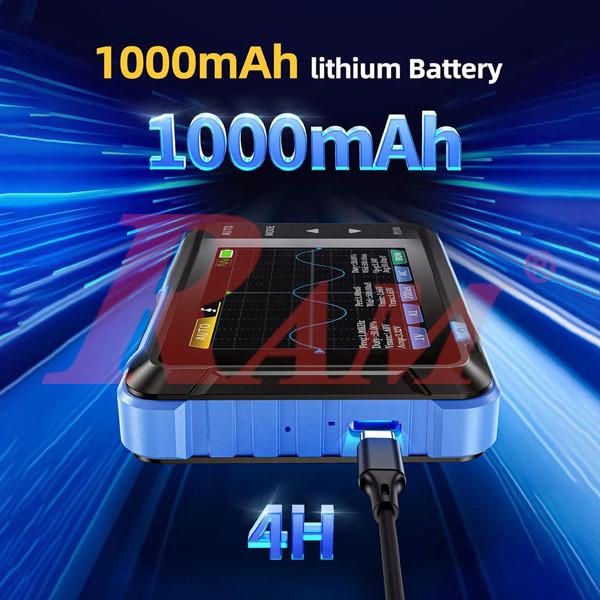

- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.

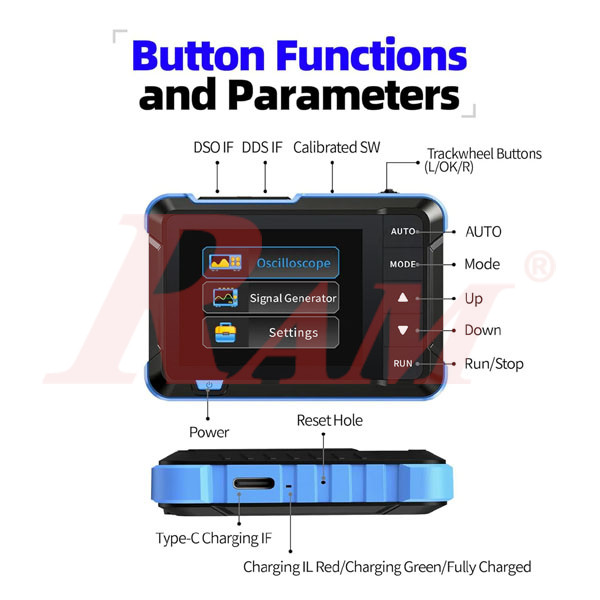

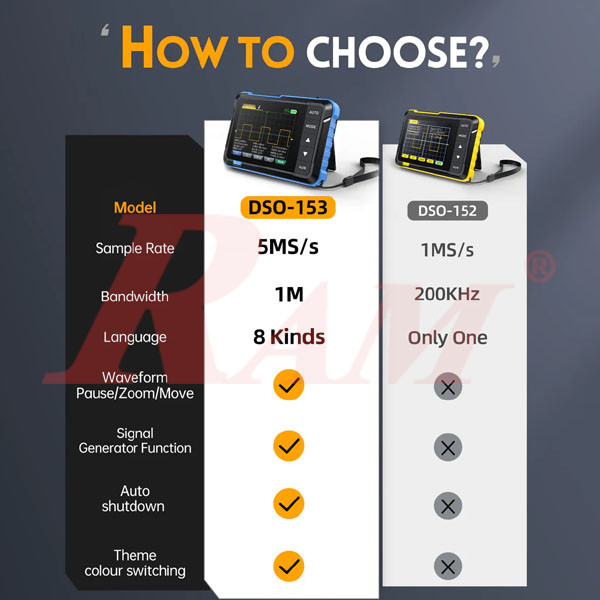

Basic Parameters

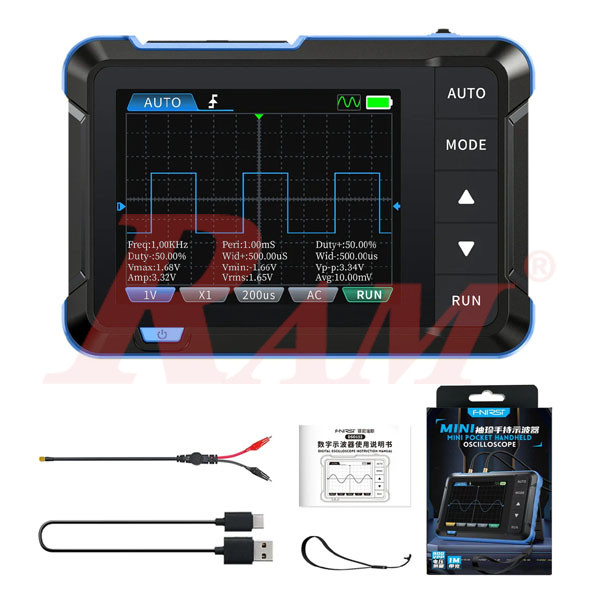

- Brand: FNIRSI
- Model: DSO-153
- Display: 2.8 inches / PPI: 320×240
- USB Charging: 5V / 1A
- Lithium Battery Capacity: 1000mAh
- Size: 99 × 68.3 × 19.5 mm
- Weight: 100g
Mini Oscilloscope
- Channel: 1
- Sampling Rate: 5 MS/s
- Bandwidth: 1 MHz
- Vertical Sensitivity: 10 mV/Div – 20 V/Div (Progress according to the 1-2-5 way)
- Time Base Range: 500 ns/Div – 20 s/Div (Progress according to the 1-2-5 way)
-
Voltage Range:
- X1: ±40 V (Vpp: 80 V)
- X10: ±400 V (Vpp: 800 V)
- Trigger Mode: Auto / Normal / Single
- Trigger Edge: Rising edge / Falling edge
- Coupling: AC/DC
Signal Generator
- Frequency: 0 – 10 kHz
- Duty Cycle: 0 – 100% (rectangular and sawtooth waves)
- Amplitude: 0.1 – 3.3 V
-
Waveforms:
- Sine wave
- Rectangular wave
- Sawtooth wave
- Half wave
- Full wave
- Step wave
- Anti-step wave
- Noise wave
- Exponential rise
- Exponential drop
- DC signal
- Multi tone
- Sink pulse
- Lorentz wave
