FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator
Product Description

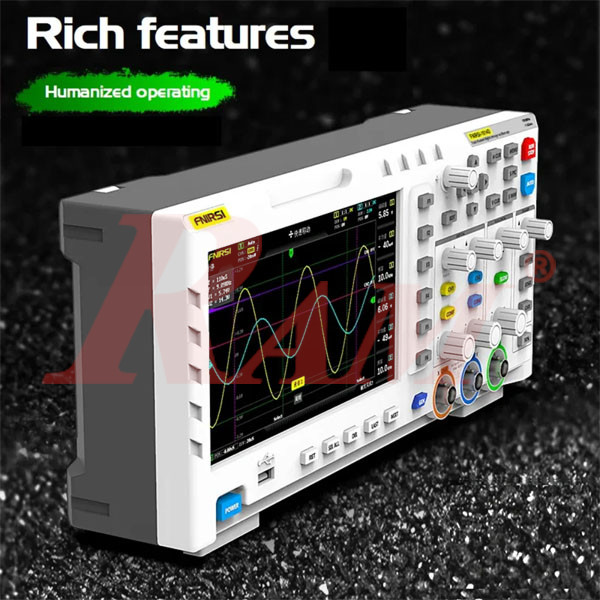

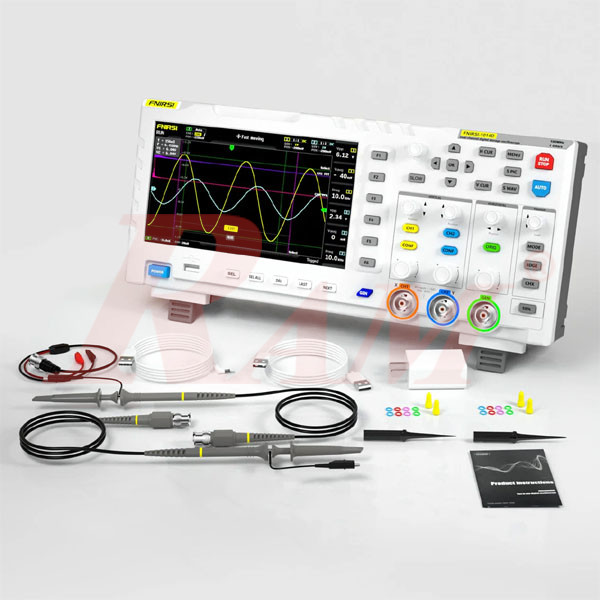

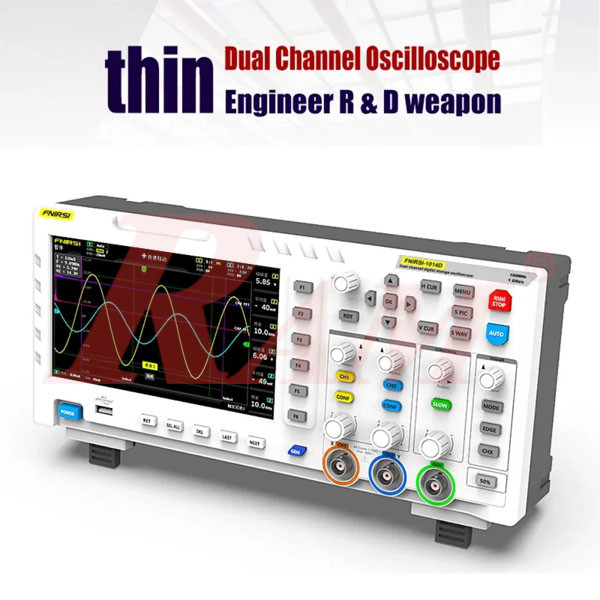

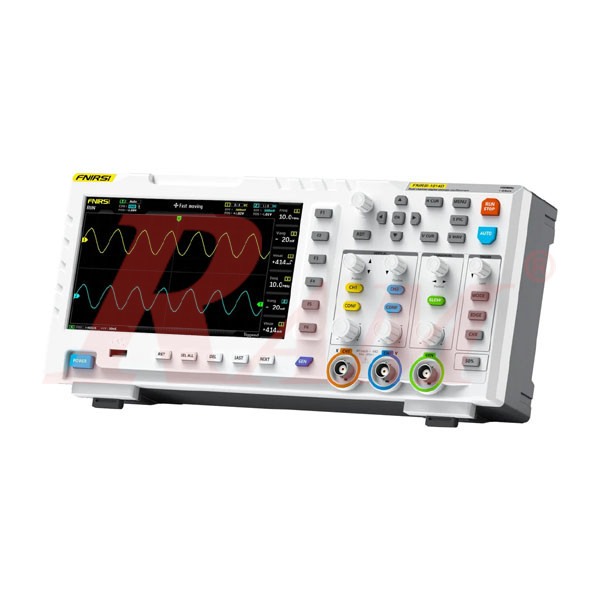

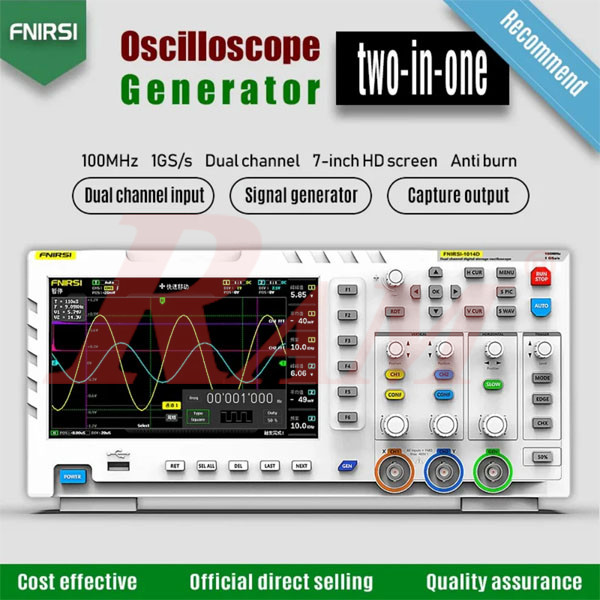

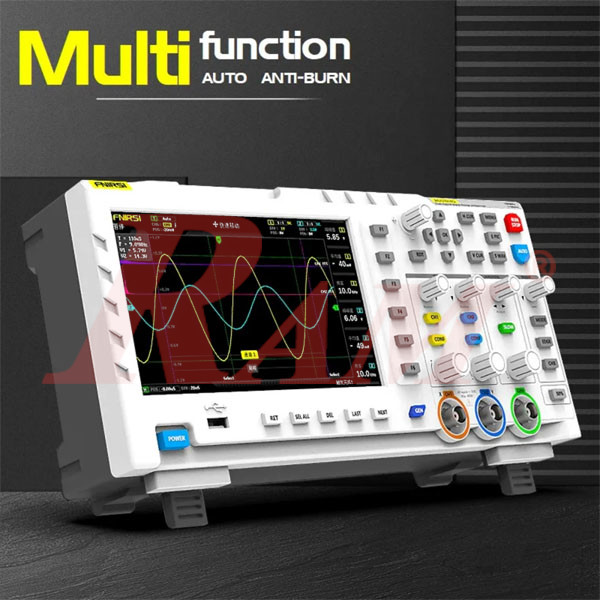

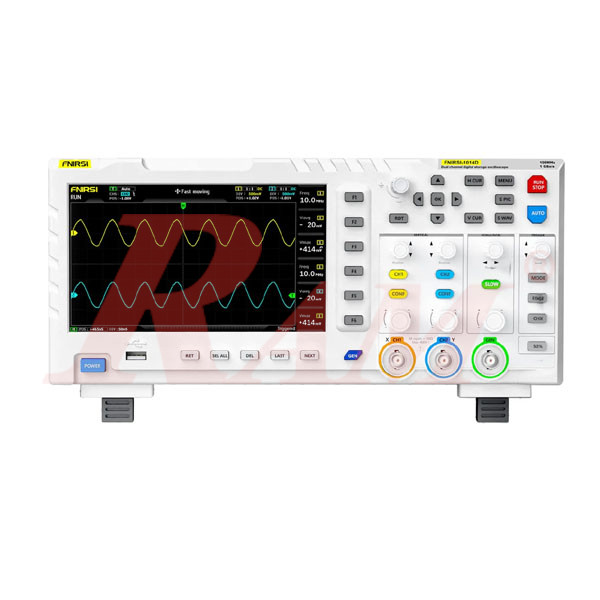

The FNIRSI® 1014D is a multifunctional 2-in-1 electronic testing instrument that combines a dual-channel digital oscilloscope and a DDS function signal generator in one compact benchtop device. Designed for electronic engineers, technicians, and electronics enthusiasts, it provides essential waveform acquisition, signal analysis, and signal generation capabilities.
The integrated digital oscilloscope features 100MHz × 2 analog bandwidth and a maximum real-time sampling rate of 1GSa/s, allowing users to observe and analyze two input signals simultaneously. With a storage depth of 240Kbit and 8-bit ADC precision, it supports waveform acquisition for both periodic analog signals and aperiodic digital signals.
The FNIRSI 1014D features a 7-inch color TFT LCD display with an 800 × 480 resolution, providing a clear viewing area for waveform observation. Its one-button AUTO function automatically adjusts the display for convenient signal observation, while adaptive trigger levels at 25%, 50%, and 75% simplify waveform acquisition.
For advanced signal analysis, the instrument supports cursor measurements, Lissajous graphic display, and FFT viewing. The Lissajous function helps compare the amplitude, frequency, and phase relationships between two signals, while FFT analysis provides an approximate representation of signal harmonic content.
In addition to its oscilloscope functionality, the built-in DDS signal generator provides multiple standard function waveforms and a customizable chopping signal. It supports a maximum sine wave frequency of 10MHz, with other standard waveforms reaching up to 2MHz. The customizable signal supports frequencies up to 1MHz, with a frequency resolution of 1Hz and an output amplitude of 2.5Vpp.

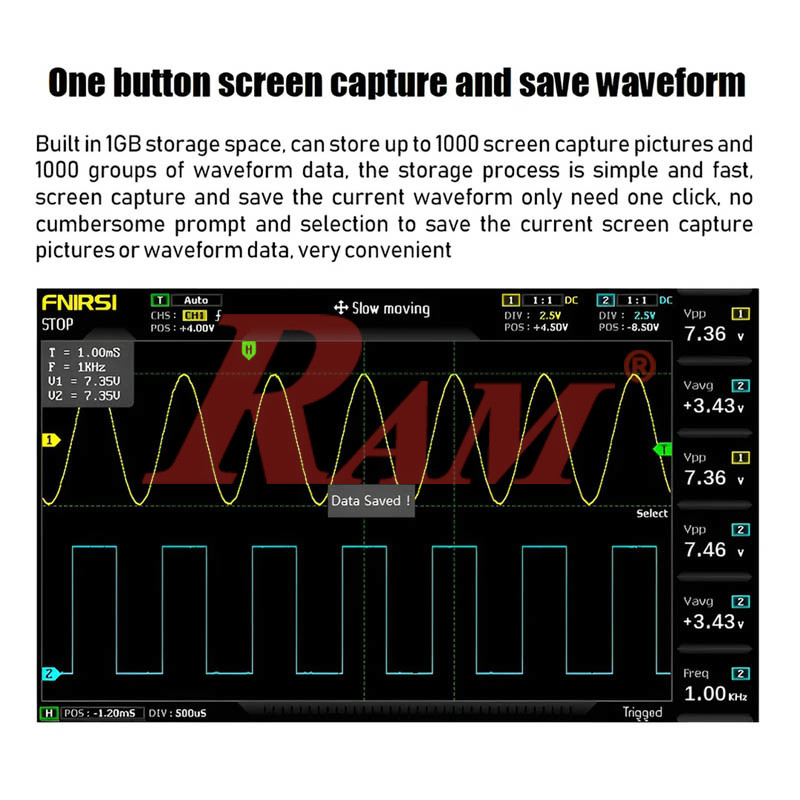

The integrated waveform picture manager provides 1GB of internal storage, supporting up to 1,000 screenshots and 1,000 sets of waveform data. Stored waveforms and images can be managed directly on the device and exported through USB.
Featuring a high-voltage protection module, USB connectivity, and a compact design, the FNIRSI 1014D is a versatile solution for electronic circuit testing, troubleshooting, signal analysis, and laboratory applications.
Key Features
- 2-in-1 Multifunctional Design: Combines a dual-channel digital oscilloscope and a DDS function signal generator.
- Dual-Channel Input: Supports simultaneous observation and analysis of two electronic signals.
- 100MHz × 2 Analog Bandwidth: Provides 100MHz analog bandwidth for each channel.
- 1GSa/s Real-Time Sampling Rate: Supports high-speed waveform acquisition.
- 240Kbit Storage Depth: Provides waveform storage capacity for signal acquisition and analysis.
- 8-Bit ADC Precision: Features an 8-bit analog-to-digital converter.
- 7-inch Color TFT LCD: Features an 800 × 480 resolution display for clear waveform visualization.
- Complete Trigger Functions: Supports Auto, Normal, and Single trigger modes with rising-edge and falling-edge triggering.
- One-Button AUTO Function: Automatically adjusts waveform display settings for convenient signal observation.
- Adaptive Trigger Levels: Supports 25%, 50%, and 75% adaptive trigger levels.
- DDS Function Signal Generator: Generates multiple standard function signals and customizable chopping signals.
- 2.5Vpp Chopping Signal Output: Provides a 2.5Vpp output for the customizable chopping signal.
- Adjustable Signal Frequency: Supports up to 10MHz sine waves, 2MHz for other standard waveforms, and 1MHz for customizable signals.
- 1Hz Frequency Resolution: Provides precise frequency adjustment for signal generation.
- Custom Signal Storage: Supports storing up to 1,000 customized chopping signals.

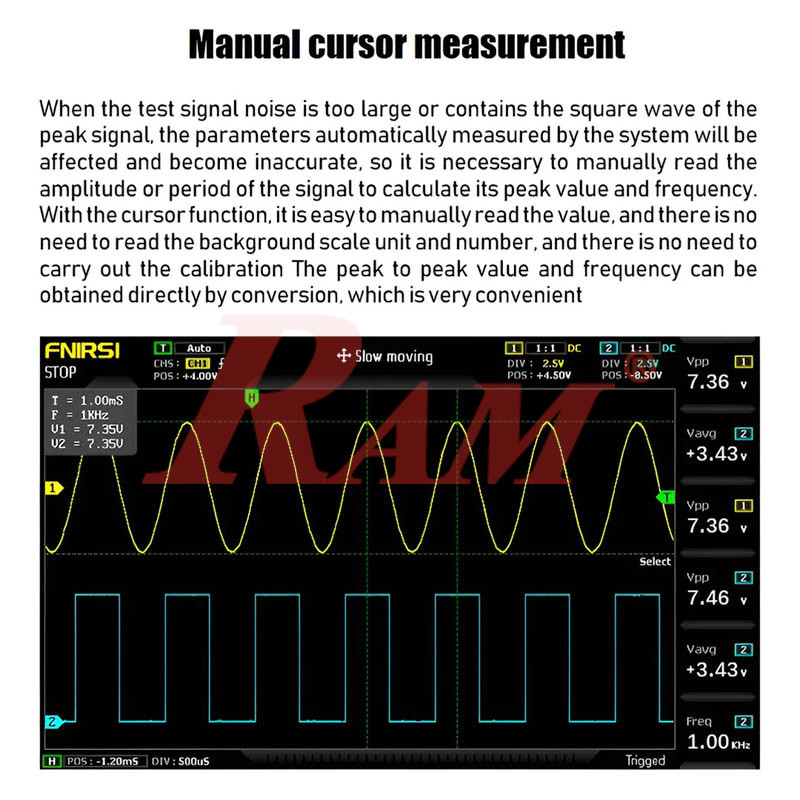

- Cursor Measurement: Allows direct measurement of waveform peak-to-peak values and frequency.

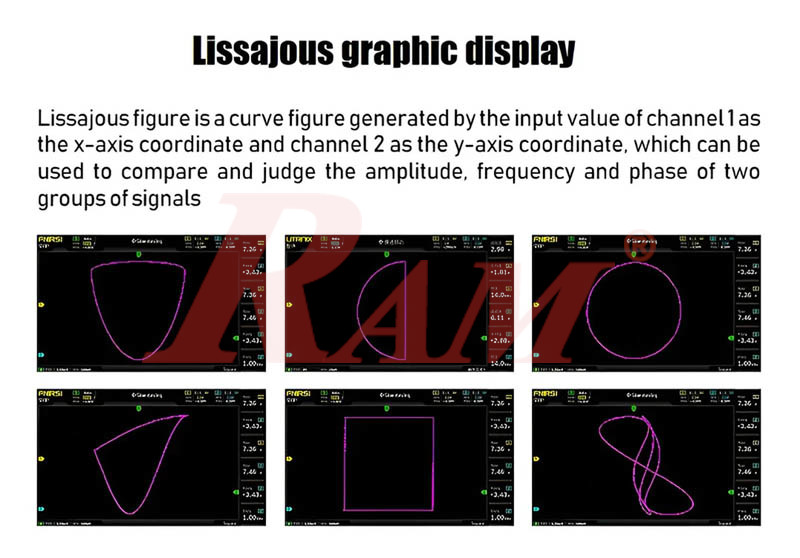

- Lissajous Graphic Display: Helps compare the amplitude, frequency, and phase relationships between two signals.
- FFT Viewing: Provides approximate harmonic content analysis.

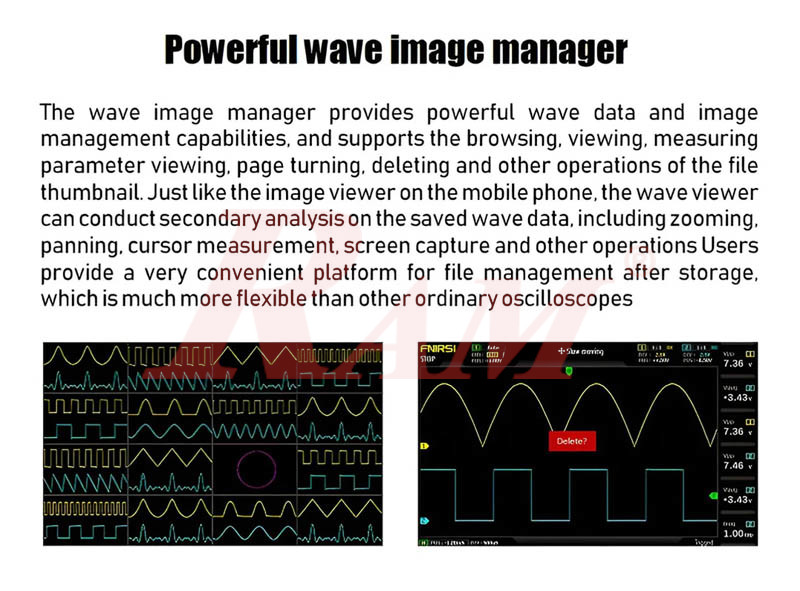

- Waveform Picture Manager: Supports browsing, viewing, and managing saved waveform images and data.
- 1GB Internal Storage: Supports up to 1,000 screenshots and 1,000 sets of waveform data.

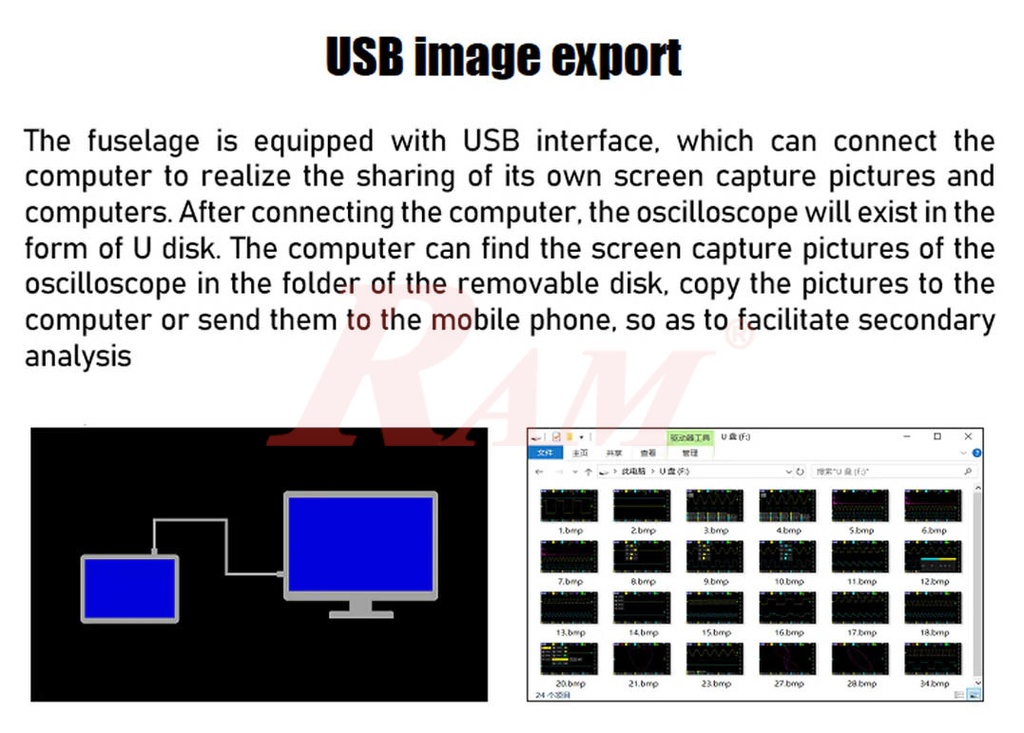

- USB Picture Export: Allows saved waveform images to be exported through USB.
- High-Voltage Protection Module: Incorporates a high-voltage protection module.
- Compact Benchtop Design: Combines waveform analysis and signal generation in one instrument.

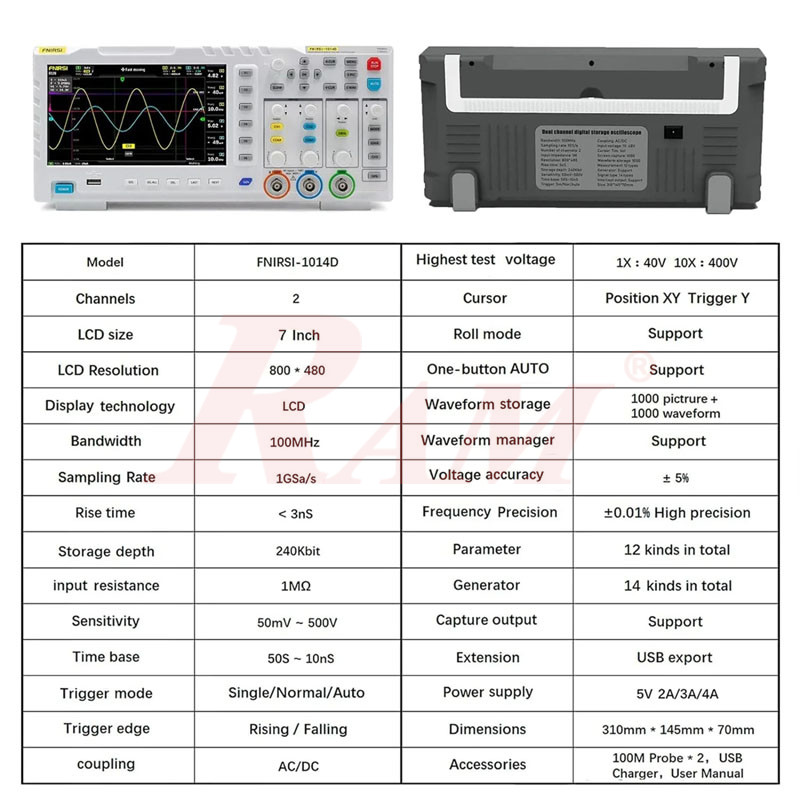

Technical Specifications
Digital Oscilloscope Specifications
| Parameter | Specification |
|---|---|
| Brand | FNIRSI |
| Model | 1014D |
| Number of Channels | 2 Channels |
| Analog Bandwidth | 100MHz × 2 |
| Maximum Sampling Rate | 1GSa/s |
| Storage Depth | 240Kbit |
| ADC Precision | 8 Bits |
| Rise Time | Less than 3ns |
| Vertical Sensitivity | 50mV/div – 500V/div |
| Horizontal Timebase | 10ns/div – 50s/div |
| Input Resistance | 1MΩ |
| Coupling | AC / DC |
| Trigger Modes | Auto / Normal / Single |
| Trigger Edge | Rising Edge / Falling Edge |
| External Trigger Voltage | 0 – 40V |
| Maximum Test Voltage | 40V (1X Probe) / 400V (10X Probe) |
| Frequency Precision | ±0.01% |
| Automatic Measurement Parameters | 12 Types |
| One-Button AUTO | Supported |
| Adaptive Trigger Levels | 25% / 50% / 75% |
| Roll Mode | Supported |
| Cursor Measurement | Supported |
| Lissajous Graphic Display | Supported |
| FFT Viewing | Supported |
| Waveform Manager | Up to 1,000 Screenshots + 1,000 Waveform Sets |
| USB Export | Supported |
| Capture Output | Supported |
DDS Signal Generator Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 1 Channel |
| Generator Type | DDS Function Signal Generator |
| Standard Waveforms | 14 Types (as listed in generator specifications) |
| Customizable Signal | 1 Chopping Signal |
| Standard Waveform Output Amplitude | 2.5Vpp |
| Sine Wave Maximum Frequency | 10MHz |
| Other Standard Waveforms Maximum Frequency | 2MHz |
| Customizable Signal Maximum Frequency | 1MHz |
| Customizable Signal Frequency Adjustment | Frequency Only |
| Frequency Resolution | 1Hz |
| Custom Signal Storage | Up to 1,000 Signals |
| Capture Output | Supported |
General Specifications
| Parameter | Specification |
|---|---|
| Display | 7-inch Color TFT LCD |
| Display Resolution | 800 × 480 Pixels |
| Housing Material | ABS |
| Internal Storage | 1GB |
| Power Supply | 5V DC |
| Supported Power Inputs | 5V 2A / 3A / 4A |
| Dimensions | 310 × 145 × 70mm |
| USB Data Export | Supported |

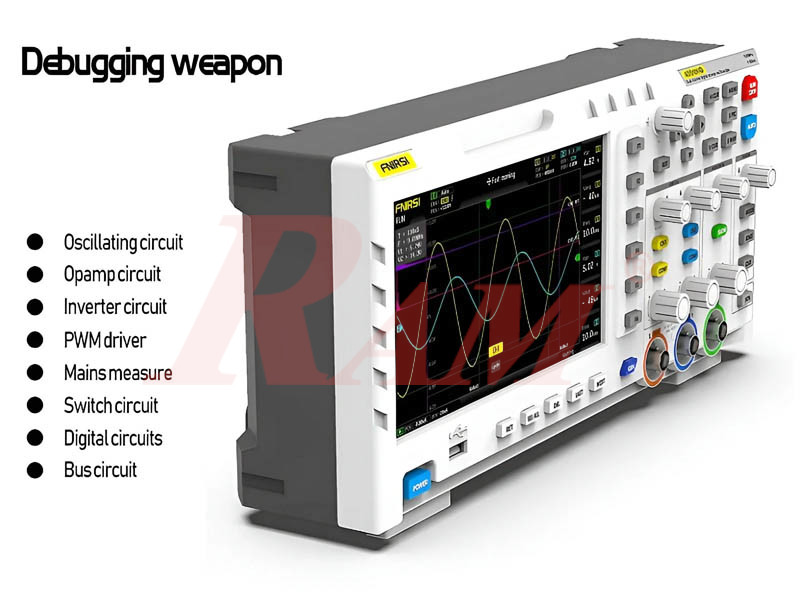

Applications
The FNIRSI 1014D combines waveform analysis and signal generation capabilities, making it suitable for various electronic testing and development applications:
- Electronic Circuit Testing: Observe and analyze electrical signals in electronic circuits using the dual-channel oscilloscope.
- Waveform Analysis: Examine signal characteristics, amplitude, frequency, and waveform variations.
- Analog Signal Testing: Observe and analyze periodic analog signals using the oscilloscope's acquisition and trigger functions.
- Digital Signal Testing: Capture and examine aperiodic digital signals.
- Signal Generation and Testing: Generate standard function waveforms and customizable chopping signals for electronic circuit testing.
- Frequency and Phase Comparison: Use Lissajous graphic display to compare the amplitude, frequency, and phase relationships between two signals.
- Harmonic Analysis: Use FFT viewing to obtain an approximate representation of signal harmonic content.
- Electronic Circuit Troubleshooting: Identify signal abnormalities and investigate circuit performance.
- Research and Development: Support electronic prototyping, circuit development, and signal testing.
- Educational Laboratories: Perform waveform observation, signal generation, and electronic measurement experiments.
Frequently Asked Questions (FAQ)
1. What functions does the FNIRSI 1014D provide?
The FNIRSI 1014D is a 2-in-1 electronic testing instrument that combines a dual-channel digital oscilloscope and a DDS function signal generator in one device.
2. What is the bandwidth of the FNIRSI 1014D oscilloscope?
It features a dual-channel analog bandwidth of 100MHz × 2, providing 100MHz bandwidth for each channel.
3. What is the maximum sampling rate of the FNIRSI 1014D?
The oscilloscope supports a maximum real-time sampling rate of 1GSa/s.
4. What types of signals can the built-in signal generator produce?
The integrated DDS generator supports multiple standard function waveforms and one customizable chopping signal. The generator specifications list 14 standard waveform types.
5. What is the maximum frequency of the FNIRSI 1014D signal generator?
The maximum sine wave frequency is 10MHz, while other standard waveforms support up to 2MHz. The customizable chopping signal supports up to 1MHz.
6. Does the FNIRSI 1014D support FFT and Lissajous analysis?
Yes. It supports FFT viewing for approximate harmonic content analysis and Lissajous graphic display for comparing the amplitude, frequency, and phase relationships between two signals.
7. How much internal storage does the FNIRSI 1014D have?
It features 1GB of internal storage, supporting up to 1,000 screenshots and 1,000 sets of waveform data. Saved images can also be exported through USB.
8. What is the maximum input voltage supported by the FNIRSI 1014D?
According to the manufacturer's specifications, the maximum test voltage is 40V when using a 1X probe and 400V when using a 10X probe. The external trigger voltage range is 0–40V. Always observe the probe attenuation and voltage ratings when making measurements.
