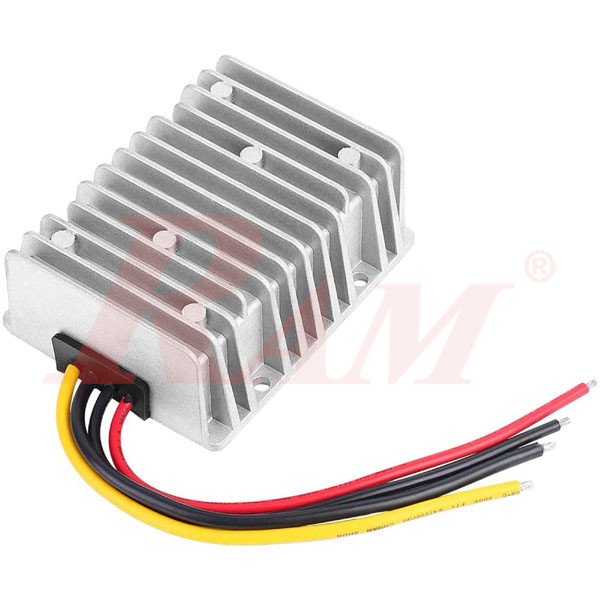

DC-DC Step Down Voltage Converter Waterproof 30A 360W (36~60Vdc to Fixed Output 12Vdc/30A) SKU#DC112

36V/48 V → 12 V, 30 A, 360 W Waterproof DC-DC Converter (IP68)

Effortlessly step down voltage with this robust, high-efficiency converter. It delivers a stable 12 V output at up to 30 A (360 W), from input sources ranging 30–60 V (up to 90 V on certain variants). Built for demanding environments, the die-cast aluminum housing with epoxy sealing offers IP68 protection and ensures reliable thermal performance via natural convection.

Key features include advanced protection circuits—against over-current, short-circuits, over-voltage, and overheating. It also offers superb performance with ripple as low as 50 mV and regulation better than ±0.2%. Compact and designed to last, it's ideal for applications like golf carts, EVs, marine systems, lighting arrays, and more.

Technical Specifications & Highlights

Here’s a refined and accurate summary of the technical specifications gathered from manufacturer and marketplace sources:

Key Electrical Specifications

• Input Voltage Rang
• • Input range: 36V to 60V
  • Input Voltage: 48V nominal
• Output:
  • Voltage: 12 V DC (fixed)
  • Current: 30 A
  • Power: 360 W rated
• Efficiency:
  • Up to 95%, especially when using synchronous rectification technology
  • Some variants claim up to 97% at half load, 95% at full load

Protection Features & Build

• Protections Included:
  • Over-current, overload, over-temperature, short-circuit, over-voltage
• Construction & Thermal Management:
  • Rugged die-cast aluminum shell, epoxy sealing, free-air convection cooling, IP68 waterproof and dustproof rating

Mechanical Details

• Dimensions & Weight:

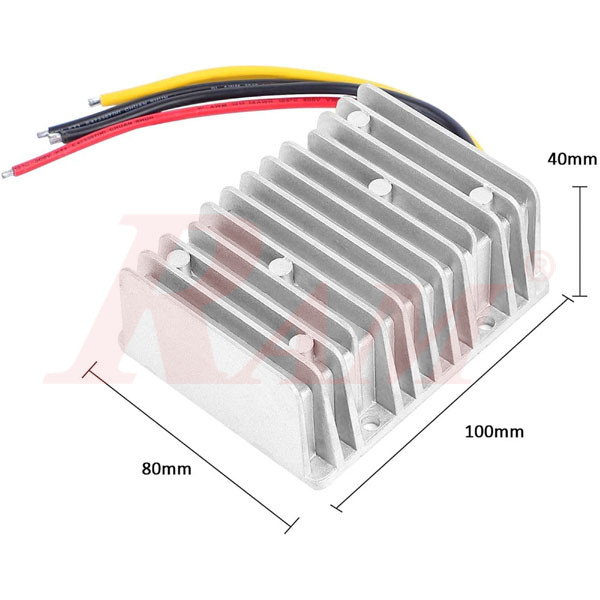

  • Typical size: 100 × 80 × 40 mm; weight around 0.5 kg

Performance & Usage Notes

• Ripple & Regulation:
  • Ripple: ~50 mV–200 mVp
  • Line regulation: ±0.2%; Load regulation: ±0.2%; Voltage accuracy: ±1.5%
• Operational Environment:
  • Operating temperature range: typically –40 °C to +85 °C

• Certifications & Standards:
  • CE, RoHS; some models also comply with standards like EN 61000 and EN 55014 series
• Applications:
  • Suitable for powering 12 V accessories from higher-voltage systems—common in golf carts, scooters, boats, heavy vehicles, LED systems, monitoring equipment, etc.

Summary Table
