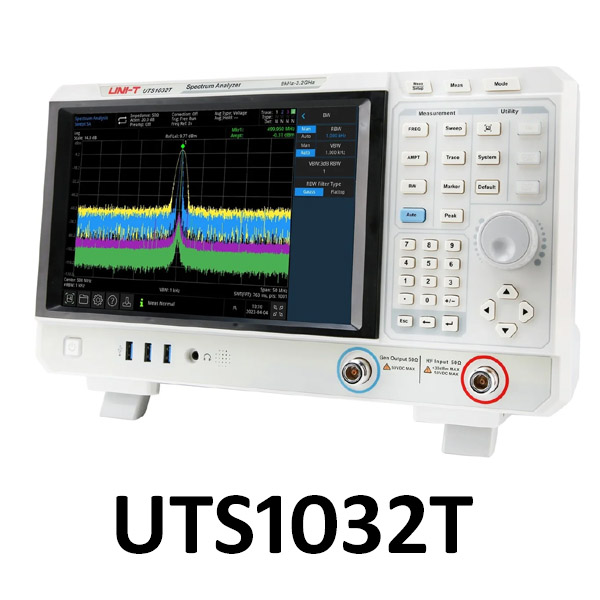

UNI-T UTS1032T Advanced-Series Spectrum Analyzer (9 kHz – 3.2 GHz)
The UNI-T UTS1032T is a professional swept spectrum analyzer designed for RF engineers, telecommunications specialists, EMC/EMI engineers, and education laboratories. Covering a wide frequency range from 9 kHz to 3.2 GHz, it delivers high sensitivity, excellent selectivity, and advanced analysis capabilities in a modern touchscreen platform.
With its 10.1-inch capacitive HD display, tracking generator, and SCPI remote control, the UTS1032T is ideal for RF design, troubleshooting, EMI pre-compliance testing, and teaching advanced RF concepts.
Key Features
- Wide frequency range: 9 kHz – 3.2 GHz
- Excellent sensitivity: DANL < –161 dBm/Hz
- High resolution bandwidth: 1 Hz – 1 MHz
- Built-in tracking generator
- 10,001 scan points for high-definition spectrum detail
- Four simultaneous trace displays
- Advanced selectivity for separating closely spaced signals
- 10.1-inch HD capacitive touchscreen (1280 × 800)
- EMI pre-compliance ready (optional EMI kits supported)
- Advanced RF measurements via optional measurement kits
- USB & LAN remote control with SCPI support
- HDMI external display output
Core Technical Specifications – UTS1032T
Frequency & RF Performance
- Frequency Range: 9 kHz – 3.2 GHz
- Resolution Bandwidth (RBW): 1 Hz – 1 MHz
-
Displayed Average Noise Level (DANL):
< –161 dBm/Hz -
Phase Noise:
< –98 dBc/Hz @ 1 GHz, 10 kHz offset - Frequency Accuracy: 1 Hz
- Scan Points: 10,001
- Traces: 4
Tracking Generator
- Tracking Source Range: 100 kHz – 3.2 GHz
- Output Impedance: 50 Ω
- Connector: N-Female
Display & User Interface
- Display Size: 10.1 inch
- Resolution: 1280 × 800
- Touchscreen: Yes (capacitive multi-touch)
- Display Modes: Spectrum, EMI (option), Analog Demodulation (option)
Measurement & Analysis Capabilities
- Spectrum analysis
- Channel power
- Occupied bandwidth
- Adjacent channel power
- Harmonic distortion
- Phase noise analysis
- Pass/Fail limit testing
- Marker, delta marker & peak search
- Max Hold / Min Hold / Average traces
(Advanced measurements available via optional AMK & EMI options)
Connectivity & Interfaces
- RF Input: Type-N Female, 50 Ω
- Tracking Generator Output: Type-N Female, 50 Ω
- External Reference Input: 10 MHz
- External Reference Output: 10 MHz
- External Trigger Input: BNC
- HDMI Output
- USB Host
- USB Device
- LAN (RJ-45 Ethernet)
- SCPI remote programming
General Specifications
-
Power Supply:
100–240 VAC ±10%, 50/60 Hz - Operating Temperature: 0 °C to +40 °C
- Product Dimensions: 15 × 9 × 5 in (approx.)
- Product Weight: 10 lb (≈ 4.5 kg)
-
Certifications: CE, cETLus, UKCA
Standard Accessories
- Power cord
- USB 2.0 printing / control cable
- English download guide
- Multi-language safety manual
- Factory calibration report (COC)
Typical Applications
- RF circuit design & debugging
- Wireless communication testing
- EMI / EMC pre-compliance analysis
- Signal interference detection
- Educational RF laboratories
- Microwave & RF system troubleshooting
Summary
The UNI-T UTS1032T combines wide frequency coverage, ultra-low noise floor, touchscreen usability, and advanced RF analysis tools into a powerful yet cost-effective spectrum analyzer—making it an excellent choice for professional RF engineers, EMC specialists, and educational institutions.
