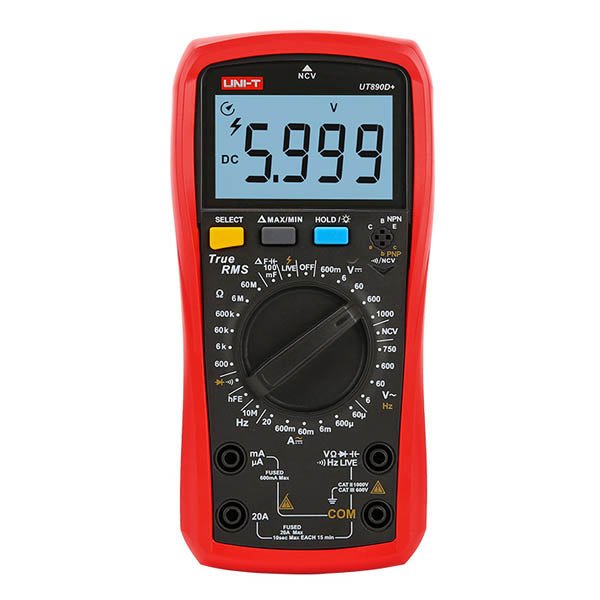

The UT890 series 6000-count true RMS digital multimeters are designed with a large LCD display. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s.
The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.
Features
- Manual range/True RMS
- Data hold/REL
- Audible/visual alarm (NCV/continuity)
- Current (AC/DC) mode memory
- Low battery indication: ≤2.5V
- NCV/hFE/Max/Min
- Diode test/Continuity test
- High voltage false detection: 1000Vrms
- Over-current alarm: ≥20A
- Auto power off/LCD backlight
| Specification | Range | UT890D+ |
| DC Voltage | 600mV/6V/ 60V/600V/ 1000V | ± (0.5%+2) |
| AC Voltage | 6V/60V/ 600V/750V | ± (0.8%+3) |
| ACV Frequency | 10Hz～10kHz | ±（0.1%+5) |
| DC Current | 60uA//600uA/ 6mA/60mA/ 600mA/20A | ± (0.8%+8) |
| AC Current | 60uA/600uA/ 6mA/60mA/ 600mA/20A | ± (1%+12) |
| Resistance | 600Ω/6kΩ/ 60kΩ/600kΩ/ 6MΩ/60MΩ | ± (0.8%+3) |
| Capacitor | 6.000nF/ 60.00nF/ 600.0nF/ 6.000μF/ 60.00μF/ 600.0μF/ 6.000mF/ 60.00mF/ 100.0mF | ± (3%+10) |
| Frequency | 9.999Hz ～ 9.999MHz | ± (1.0%+5) |
| Features | ||
| Display Count | 6000 | |
| Manual Range | √ | |
| NCV | √ | |
| hFE | √ | |
| Diode Test | √ | |
| Continuity Test | √ | |
| Live | √ | |
| True RMS | √ | |
| Fuse blowing alarm | √ | |
| Acousto-optic indication (NCV / continuity) | √ | |
| High voltage false detection | 1000Vrms | √ |
| Current (AC/DC) mode memory | √ | |
| Over-current alarm | ≥20A | √ |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| REL | √ | |
| Max/Min | V 、A | √ |
| Auto Power Off | 15Min | √ |
| Backlight | 30s | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT II 1000V /CAT III 600V | |
| General Characteristics | ||
| Power | 1.5V x 2 | |
| Product Color | Red and Gray | |
| Product Net Weight | 346g | |
| Product Size | 183mm x 88mm x 56mm | |
| Standard Individual Packing | Gift Box, Manual |
