Not knowing your battery's real charge level leads to two costly mistakes: pulling a battery too early and cutting your runtime short, or draining it too far and shortening its lifespan. Whether you're running a single 18650 cell or managing a full battery pack across a drone, e-bike, or power station, there are several ways to actually see what's going on inside your battery — from a simple LED bar to a full diagnostic analyzer. This guide walks through each option so you can pick the right one for your setup.
Want to skip straight to the products? Browse our full Batteries & Chargers collection
Why Monitoring Battery Charge Level Matters
- Prevents over-discharge, which permanently reduces a lithium battery's capacity over time
- Helps you plan runtime accurately for RC, drone, or power-station use
- Gives an early warning before a device shuts down unexpectedly
- Essential for multi-cell packs (1S–8S), where individual cells can drift out of balance
Ways to Check Your Lithium Battery's Charge Level
Built-in Charger Displays
Many smart chargers show charge status directly on their own screen while charging — no separate part needed. The LiitoKala Lii-S8 shows per-slot charging status on its LCD, and the SkyRC MC5000 goes further with a full-color display and Bluetooth app monitoring. This is the simplest route if you're only checking charge level while the battery is on the charger.
Dedicated Battery Capacity Indicator Modules
If you need to check a battery pack's charge level outside of a charger — while it's installed in a project, e-bike, or power bank — a standalone indicator module is the answer. These wire directly into the battery pack and give an always-available LED readout.
Battery Analyzers
For the most detail — actual internal resistance, not just voltage — a full analyzer like the SkyRC MC5000 tests real battery health, not just charge percentage. This is the right tool if you need to know whether a battery is actually degrading, not just how full it currently is.

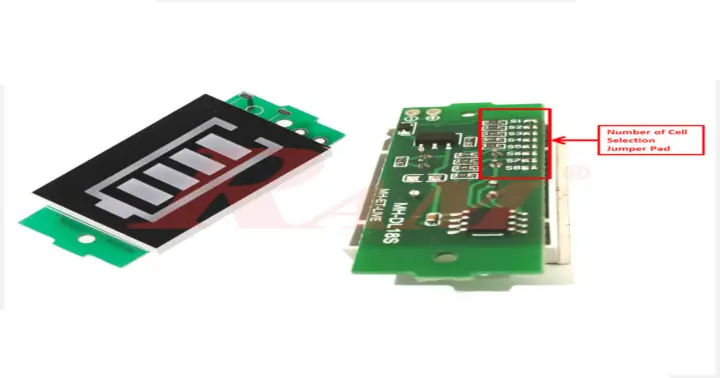

MH-DL18S Battery Capacity Indicator — How It Works
The MH-DL18S is RAM's standalone option for the second category above — a compact LED module that wires directly into a lithium-ion or LiPo pack and shows charge level at a glance, with no display or microcontroller needed.
Specification | Value |
Supported battery | Li-ion / LiPo, 1S to 8S |
Operating voltage | 3.7 V – 33.6 V |
Display | LED bar (typically 4 LEDs) |
Connection | Simple 3-wire (Battery +, B-, Signal) |
Cell balancing | No — voltage indication only |
How the LEDs read:
- 1 LED — Low battery (~3.3–3.6 V/cell)
- 2 LEDs — ~4.0 V/cell
- 3 LEDs — ~4.1 V/cell
- 4 LEDs — ~4.2 V/cell (fully charged)
(Typical behavior — may vary slightly by board calibration.)
Good to know: the MH-DL18S indicates voltage level only — it does not balance cells across a multi-cell pack.
Managing a multi-cell pack and need to charge it too? Pair the indicator with a multi-slot charger
Choosing the Right Option for Your Setup
- Only checking charge while charging? A charger with a built-in display (Lii-S8, MC5000) is enough — no extra part needed.
- Need to see charge level while the battery is installed in a device or project? Add a dedicated indicator module like the MH-DL18S.
- Need to know actual battery health, not just charge level? Step up to a full analyzer like the MC5000, which measures internal resistance.
Installation & Usage Tips
- Double-check polarity before connecting — reverse polarity can damage the indicator board.
- Use battery holders or XT60/Deans connectors for a clean, reusable connection.
- Remember the indicator is for measurement only — it's not rated for continuous high-current load.
Frequently Asked Questions
Does a battery capacity indicator balance the cells in my pack?
No — modules like the MH-DL18S only show voltage level; they don't balance cells. For balancing, you'd need a charger with built-in balance charging.
Can I use a battery indicator with a single 18650 cell?
Yes, the MH-DL18S supports packs from 1S (a single cell) up to 8S.
What's the difference between an indicator module and a battery analyzer?
An indicator module only shows voltage-based charge level. A battery analyzer, like the SkyRC MC5000, also measures internal resistance to assess actual battery health, not just how charged it currently is.
Will an indicator work while my battery is charging?
It's designed to read charge level generally — for real-time charging status specifically, a charger with a built-in display is more reliable.
